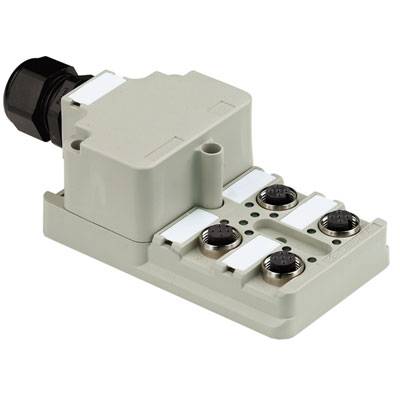

Weidmüller SAI-4-M 5P M12 1:1 1806010000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
SAI-4-M 5P M12 1:1
Datasheet (PDF)
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-4-M5P M12 1:1
Technical specifications
- Distributor material: Plastic
- cover sealing material: Viton
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- plug-in cycles: ≤ 50
- distribution outlet: Hood version
- Wire outer diameter: 6 mm - 12 mm
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- Potential separation available: Yes
- Towing chain suitability: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
SAI-4-M 5P M12 1:1
- Trunk line
No
- No. of splitters
4-way
- Status indicator
No LED
- Connection
Screws
IP67
- Max. power rating per slot
4 A
- Total current (direct supply)
8 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
Screw
- Case material
Polyester
- Total no. of pins
5
- Weight
190.9 g
- Manufacturer part #
1806010000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Power rating (total)
8 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
60
41.5 mm
Grey
102 m
Plastic
-20-90 °C
None
None
Gold
IP67
FALSE
3
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203834 Weidmüller SAI-4-M 5P M12 1:1 1806010000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 203834 Weidmüller SAI-4-M 5P M12 1:1 1806010000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. M12, hood version, yes. M12 splitter are offered in all possible designs. The 4.6 or 8 M12 slots are 4 or 5-pin. The Collective outlet is either in the form of fixed cable version, hood variants for self or connect with M23. There are also some special versions. There are 1 to 1 distributor for the free choice of the connections or distributor for the Ex zone 1.
