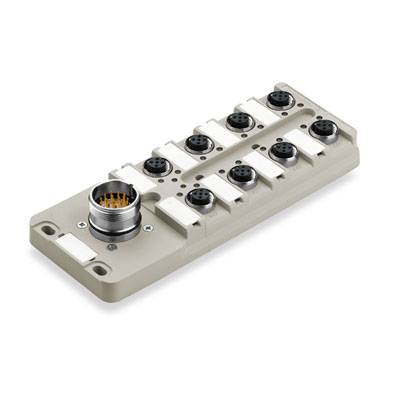

Weidmüller SAI-6-S 5P M12 9456010001 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
6
No. of splitters
6-way
Type
SAI-6-S 5P M12
Datasheet (PDF)
Highlights & Details
Sensor/Actuator box
- SAI-6-S5P M12
Technical specifications
- Distributor material: Plastic
- cover sealing material: Viton
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- mating cycles: ≤ 50
- LED color for operating function: Green
- LED color for I/O function: Yellow
- insulation length: 100 mm
- distribution outlet: With M23 outlet, 19-pole
- test voltage: 1 kV
- nominal voltage: 10 V - 30 V
- Towing chain capability: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
6
- Type
SAI-6-S 5P M12
- Trunk line
No
- No. of splitters
6-way
- Status indicator
LED
- Connection
M12 socket
- Length
127 mm
IP68
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector type (distribution boxes)
M12 socket
- Case material
Polyester
- Total no. of pins
5
- Weight
203 g
- Manufacturer part #
9456010001
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Height
146 mm
- Power rating (total)
10 A
- Power rating per I/O
2 A
Grey
Plastic
-20-90 °C
None
None
Gold
IP68
TRUE
3
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259682 Weidmüller SAI-6-S 5P M12 9456010001 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 259682 Weidmüller SAI-6-S 5P M12 9456010001 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. M12, with M23 outlet, yes. M12 splitter are offered in all possible designs. The 4.6 or 8 M12 slots are 4 or 5-pin. The Collective outlet is either in the form of fixed cable version, hood variants for self or connect with M23. There are also some special versions. There are 1 to 1 distributor for the free choice of the connections or distributor for the Ex zone 1.
