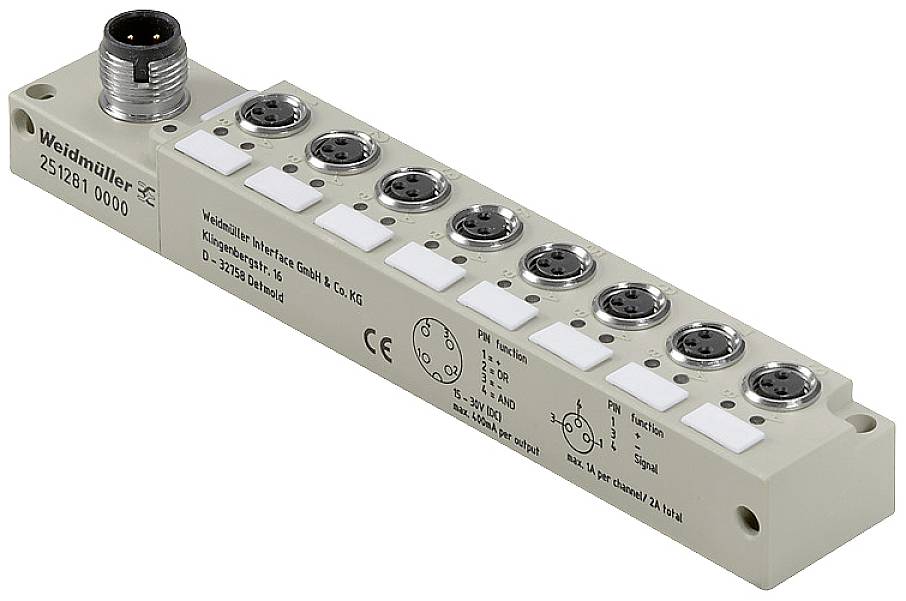

Weidmüller SAI-8-S-3P-M8L-M12-LOG 2512810000 Sensor & actuator box (passive) M12 splitter + plastic thread 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
12
No. of splitters
8-way
Type
SAI-8-S-3P-M8L-M12-LOG
Status indicator
LED
Datasheet (PDF)
Technical specifications
- Contact material: CuZn, Ni-plated
- threaded sockets: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- Connection thread: M8
- LED Color for operating function: Green
- LED Color for I/O Function: Yellow, green
- Distribution outlet: With M12 Output
- Rated voltage: 24 V
- Rated current: 500 mA
- Nominal voltage: 15 V - 30 V
- Towing chain suitability: No.
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
12
- Type
SAI-8-S-3P-M8L-M12-LOG
- No. of splitters
8-way
- Status indicator
LED
IP67
- Total current (direct supply)
2 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Case material
Polyester
- Total no. of pins
3
- Weight
107 g
- Manufacturer part #
2512810000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
3
- RoHS-compliant
Yes
- UKCA
yes
