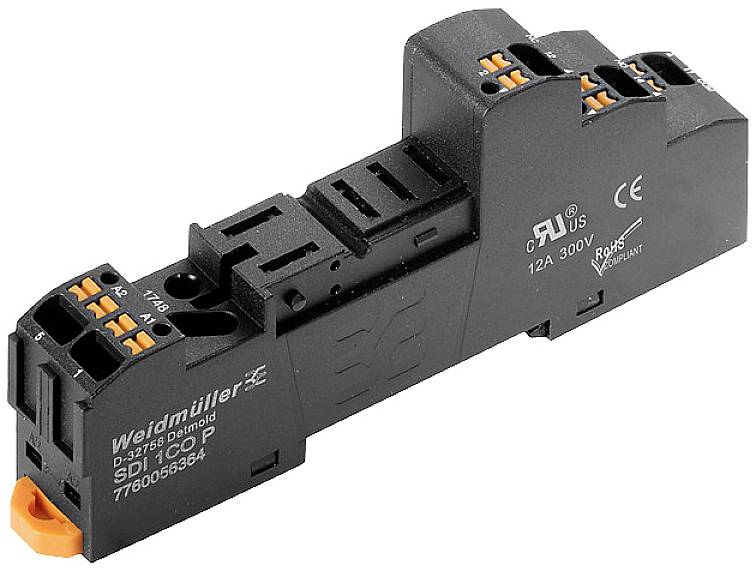

Weidmüller SDI 1CO P Relay socket pluggable (W x H) 15.9 mm x 102.1 mm Piece 20 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay socket
Connection
Push-in connector
Mounting type
DIN rail
Content
20 pc(s)
Datasheet (PDF)
Technical specifications
- Insulation stripping length rated connection: 10 mm
- Flammability class according to UL 94: V-0
- Continuous current 12 A
- Insulation material group: IIIB
- Clamping range, rated connection 1.5 mm²
- Clamping range, max. 1.5 mm²
- Creepage and air distance input - output: ≥ 3 mm
- Storage temperature: -40 °C…85 °C
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Nominal switching voltage 250 V AC
- Product note: Only connection A2 with the cross connection SCM/SDI P CC (article no. 7760056366) can be bridged on this socket. The protection module (RC filter) RIM 3 110/230VAC LED with article no. 7760056045 is not compatible with this socket.
- Switching voltage AC, max. 250 V
- Electrical strength input - output: 5 kVeff / 1min
- Depth: 42.7 mm
- Over voltage category III
- Pollution level: 2
- Packaging type
Piece
- Product type
Relay socket
- Content
20 pc(s)
- Features
pluggable
- Factory colour
Black
- Connection
Push-in connector
- Mounting type
DIN rail
- Operating voltage
300 V
- Contact type
1 change-over
- Number of pins
5
- Weight
36.75 g
- Compatible with
Weidmüller
IP20
- Min. temperature
-40 °C
- Max. temperature
+55 °C
- Width
15.9 mm
- Height
102.1 mm
- Dim
(W x H) 15.9 mm x 102.1 mm
- RoHS-compliant
Yes
- Type
SDI 1CO P
- UKCA
not relevant
