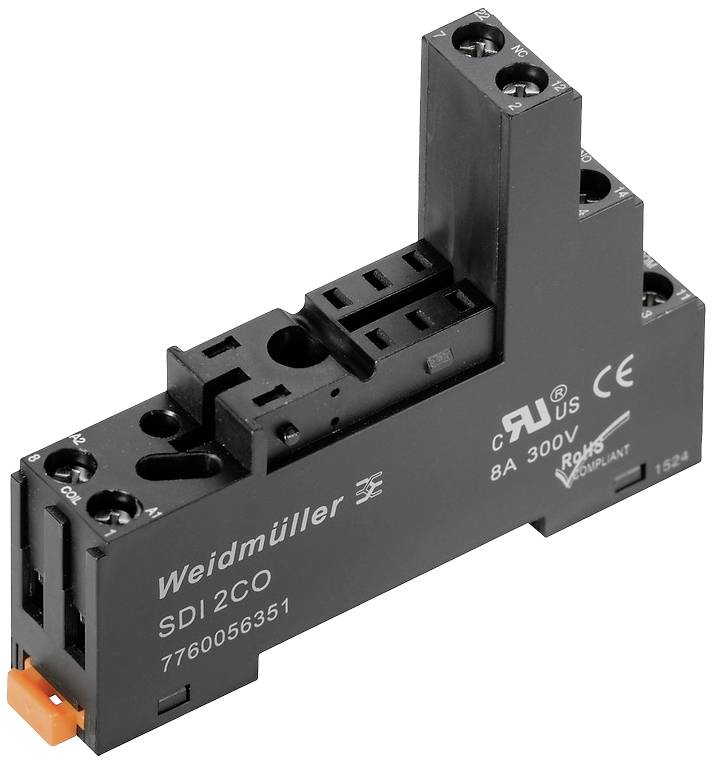

Weidmüller SDI 2CO Relay socket (W x H) 15.8 mm x 80.2 mm Piece 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay socket
Connection
Screws
Mounting type
DIN rail
Content
10 pc(s)
Datasheet (PDF)
Technical specifications
- Wire stripping length rated connection: 8 mm
- Tightening torque, max.: 0.8 Nm
- Flammability class according to UL 94: V-0
- Continuous current 8 A
- Insulation material group: IIIB
- Clamping range, rated connection 1.5 mm²
- Clamping range, max. 4 mm²
- Creepage and air distance input - output: ≥ 3 mm
- Storage temperature: -40 °C…85 °C
- Conductor cross-section, single-wire, max. 4 mm²
- Conductor cross-section, fine strand, max. 4 mm²
- Nominal switching voltage 250 V AC
- STANDARDS: EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
- Switching voltage AC, max. 250 V
- Voltage strength input - output: 4 kVeff / 1 min.
- Standing surge voltage 4.8 kV (1.2/50 µs)
- Depth: 61 mm
- Over voltage category III
- Pollution level: 2
- Packaging type
Piece
- Product type
Relay socket
- Content
10 pc(s)
- Factory colour
Black
- Connection
Screws
- Mounting type
DIN rail
- Operating voltage
250 V
- Contact type
2 change-overs
- Number of pins
8
- Weight
42.4 g
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
15.8 mm
- Height
80.2 mm
- Dim
(W x H) 15.8 mm x 80.2 mm
- RoHS-compliant
Yes
- Type
SDI 2CO
- UKCA
yes
