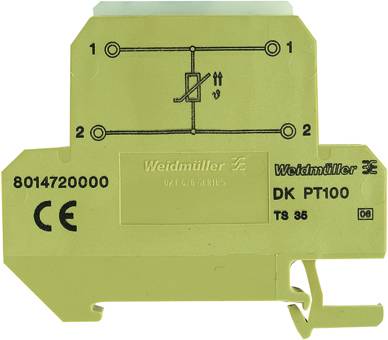

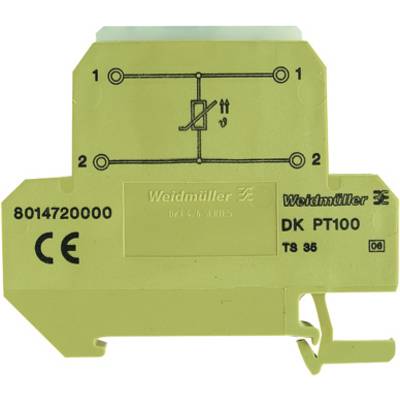

Weidmüller Serial terminal 10 pc(s) DKT 4/35 PT100 400 V (max)
EAN:
Part number:
Item no:
Product type
Serial terminal
Connection
Screw terminal
Max. operating voltage
400 V
Type
DKT 4/35 PT100
Operating voltage
400 V (max)
Datasheet (PDF)
Highlights & Details
Component series terminal
- Industrial packaging, pack of 10
Our service for you
Technical specifications
- Storage temperature: +10 °C to +40 °C.
- Mounting rail TS 35
- Color: beige/yellow
- Clamping range: 0.33 mm² - 4 mm²
- CONDUCTOR CROSS-SECTION AWG: AWG 22 - AWG 12
- Conductor cross-section, fine strand 0.5 mm² - 4 mm²
- Blade dimensions 0.6 mm x 3.5 mm
- Stripped length: 6 mm
- Nominal current 10 A
- Number of connections: 4
- Material: PA 66
- Product type
Serial terminal
- Type
DKT 4/35 PT100
- Connection
Screw terminal
- Max. operating voltage
400 V
- Operating voltage
400 V (max)
- Min. temperature
-50 °C
- Max. temperature
+100 °C
- Width
6 mm
- Height
65 mm
- Length
53.5 mm
- Dim
(L x W x H) 53.5 x 6 x 65 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391223 Weidmüller Serial terminal 10 pc(s) DKT 4/35 PT100 400 V (max)
User & Safety Instructions
User & Safety Instructions 391223 Weidmüller Serial terminal 10 pc(s) DKT 4/35 PT100 400 V (max)
Description
Component series terminal. SAK Series, rated cross section: 4 mm², screw connection. Temperature Ranges and material: 100°C-PA 6.6, 130°C-KrG, 160°C-Epoxiharz, 250°C ceramic.
