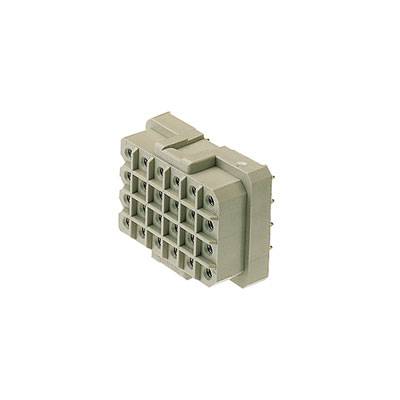

Weidmüller SIL socket (standard) RSV Total number of pins 18 Contact spacing: 5 mm 1444300000 25 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (standard)
Connector type
Socket, straight
No. of rows
3
Series
RSV
CS
5 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 25 pc(s)
- No. of rows: 3
- Total number of pins: 18
Our service for you
Technical specifications
- Product type
SIL socket (standard)
- Connector type
Socket, straight
- No. of rows
3
- Connector system
wire-to-board
- Series
RSV
- CS
5 mm
- Pins per row
6
- Total number of pins
18
- Width
18.5 mm
- Nominal current
14 A
- Nominal current - rounded value
14 A
- Content
25 pc(s)
- Dim
(L x W x H) 32.6 x 18.5 x 17.5 mm
- Connection
Print
- Case material
Thermoplastic
- Manufacturer part #
1444300000
- Factory colour
Grey
- Industrial packaging
Yes
- Insulation material
Thermoplastic
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
500 V
- Height
17.5 mm
- Length
32.6 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+100 °C
- Min. temperature
-25 °C
- Type
RSV1,6 LB18 GR 3,2 SN
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 321789 Weidmüller SIL socket (standard) RSV Total number of pins 18 Contact spacing: 5 mm 1444300000 25 pc(s)
User & Safety Instructions
User & Safety Instructions 321789 Weidmüller SIL socket (standard) RSV Total number of pins 18 Contact spacing: 5 mm 1444300000 25 pc(s)
Description
PCB connector. Female header, 5.00 mm, number of poles: 18, solder pin length: 3.2 mm, tinned, pebble gray, Box. Rectangular Connectors with lotbuchsenkontakten for PCB applications. High packing density by several rows and the use of crimp contacts in the counterpart. The connectors are encoded and with the counterpiece lockable. Supplied in a carton. 500 V (IEC) / 300 V (UL), 14 A (IEC) / 10 A (UL),.
