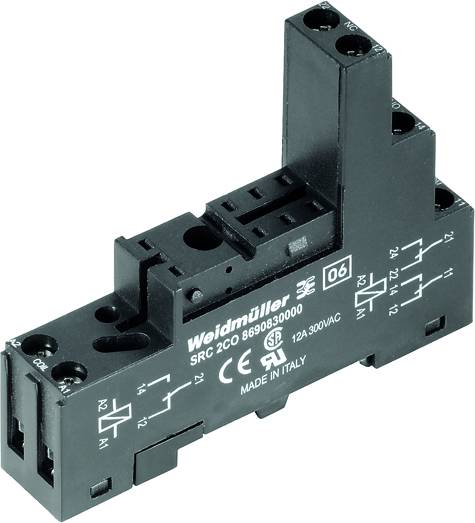

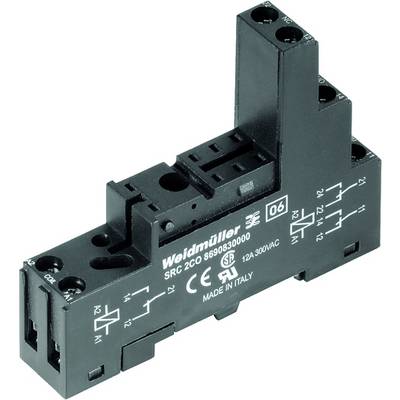

Weidmüller SRC 2CO Relay socket pluggable Compatible with series: Weidmüller RIDERS series (L x W x H) 65 x 15.6 x 77.6
EAN:
Part number:
Item no:
Product type
Relay socket
Connection
Screws
Mounting type
DIN rail
Content
10 pc(s)
Features
pluggable
Datasheet (PDF)
Technical specifications
- Wire stripping length rated connection 7 mm
- Tightening torque, max.: 0.8 Nm
- Clamping range, rated connection 2.5 mm²
- Clamping range, max. 1.5 mm²
- Storage temperature: -40 °C…70 °C
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Standards: UL508
- Pitch in mm (P): 5 mm
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Depth: 61 mm
- Product type
Relay socket
- Content
10 pc(s)
- Features
pluggable
- Factory colour
Black
- Connection
Screws
- Mounting type
DIN rail
- Contact type
2 change-overs
- Industrial packaging
Yes
- Weight
43.26 g
- Compatible with
Weidmüller
- Compatible with series
Weidmüller RIDERS series
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
15.6 mm
- Height
77.6 mm
- Length
65 mm
- Dim
(L x W x H) 65 x 15.6 x 77.6 mm
- RoHS-compliant
Yes
- Type
SRC 2CO
- Depth
61 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 391583 Weidmüller SRC 2CO Relay socket pluggable Compatible with series: Weidmüller RIDERS series (L x W x H) 65 x 15.6 x 77.6
User & Safety Instructions
User & Safety Instructions 391583 Weidmüller SRC 2CO Relay socket pluggable Compatible with series: Weidmüller RIDERS series (L x W x H) 65 x 15.6 x 77.6
Description
Relay socket. RIDERSERIES, accessories. Relay socket for relays in RIDERSERIES RCL. Socket for PCB connections.
