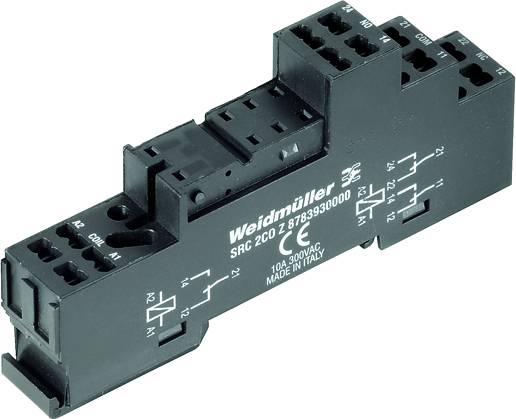

Weidmüller SRC 2CO Z Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 80 x 16 x 98.1 mm 10 pc(s
EAN:
Part number:
Item no:
Product type
Relay socket
Connection
Pull spring
Mounting type
DIN rail
Content
10 pc(s)
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Relay Sockets
Our service for you
Technical specifications
- Stripping length rated connection 11 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, max. 1.5 mm²
- Storage temperature: -40 °C…70 °C
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Standards: UL508
- Pitch in mm (P): 5 mm
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Depth: 45 mm
- Product type
Relay socket
- Content
10 pc(s)
- Factory colour
Black
- Connection
Pull spring
- Mounting type
DIN rail
- Contact type
2 change-overs
- Industrial packaging
Yes
- Weight
38.5 g
- Compatible with
Weidmüller
- Compatible with series
Weidmüller RIDERS series
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
16 mm
- Height
98.1 mm
- Length
80 mm
- Dim
(L x W x H) 80 x 16 x 98.1 mm
- RoHS-compliant
Yes
- Type
SRC 2CO Z
- Depth
45 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391691 Weidmüller SRC 2CO Z Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 80 x 16 x 98.1 mm 10 pc(s
User & Safety Instructions
User & Safety Instructions 391691 Weidmüller SRC 2CO Z Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 80 x 16 x 98.1 mm 10 pc(s
Description
Relay socket. Rider Series. Spring-cage connection. Plug-in socket for PCB connections.
