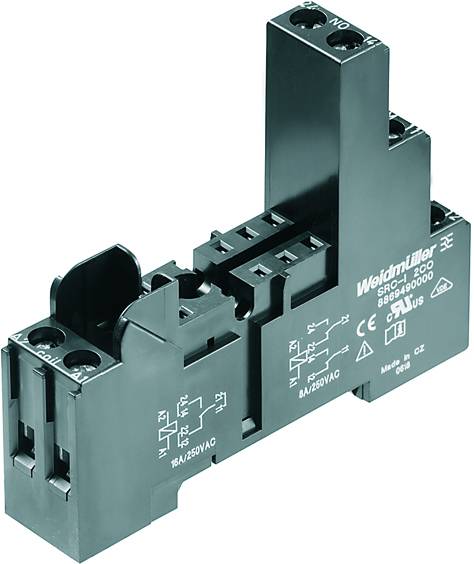

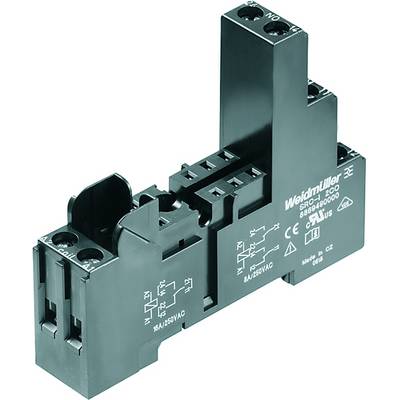

Weidmüller SRC-I 2CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 15.8 x 77 mm 10 pc(s
EAN:
Part number:
Item no:
Product type
Relay socket
Connection
Screws
Mounting type
DIN rail
Content
10 pc(s)
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Relay Sockets
Our service for you
Technical specifications
- Wire stripping length rated connection: 8 mm
- Tightening torque, max. 0.7 Nm
- Flammability class according to UL 94: V-0
- Continuous current 12 A, 16 A(1
- Insulation material class IIIa
- Clamping range, rated connection 2.5 mm²
- Clamping range, max. 2.5 mm²
- Creepage and air distance input - output: ≥ 10 mm
- Storage temperature: -40 °C…70 °C
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Nominal switching voltage 250 V AC
- Standards: IEC 61810-1, UL508
- Product note: 1) for the full continuous current (16 A), the relay connections 11 - 21, 12 - 22 and 14 - 24 must be bridged. IP20 without connected conductor with fully open draft bar connection.
- Pitch in mm (P): 5 mm
- Switching voltage AC, max. 400 V
- Electrical strength input - output: 5 kVeff / 1min
- Depth: 61.5 mm
- Over voltage category III
- Pollution level: 2
- Product type
Relay socket
- Content
10 pc(s)
- Factory colour
Black
- Connection
Screws
- Mounting type
DIN rail
- Operating voltage
250 V
- Contact type
2 change-overs
- Industrial packaging
Yes
- Weight
39.28 g
- Compatible with
Weidmüller
- Compatible with series
Weidmüller RIDERS series
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
15.8 mm
- Height
77 mm
- Length
70 mm
- Dim
(L x W x H) 70 x 15.8 x 77 mm
- RoHS-compliant
Yes
- Type
SRC-I 2CO
- Depth
62 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391758 Weidmüller SRC-I 2CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 15.8 x 77 mm 10 pc(s
User & Safety Instructions
User & Safety Instructions 391758 Weidmüller SRC-I 2CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 15.8 x 77 mm 10 pc(s
Description
Relay socket. RIDERSERIES, continuous current 16 A, 8 A, screw connection
