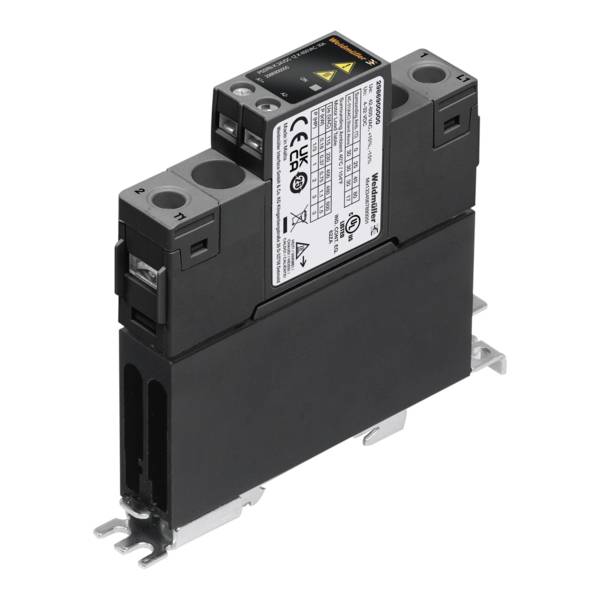

Weidmüller SSC 2986900000 75 A Switching voltage (max.): 600 V AC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSC
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
600 V AC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
SSC
- Type
PSSRN K 24VDC 1Z K 600VAC 30A
- Connection
Screws
- Control voltage (min.)
4 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4 - 32 V DC
- Switching voltage (min.)
42 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
75 A
- Output voltage (max.)
600 V AC
- Contact type
1 maker
IP20
- Width
17.8 mm
- Depth
103 mm
- Permanent current (max.)
30 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748986 Weidmüller SSC 2986900000 75 A Switching voltage (max.): 600 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748986 Weidmüller SSC 2986900000 75 A Switching voltage (max.): 600 V AC 1 pc(s)
Description
A semiconductor contactor is used for the wear-free and noiseless switching of loads up to 75 A in the automation technology. Control and load circuits are electrically isolated. They are available in different designs and with and without mounted heat sink. By the semiconductor technology, loads with a higher switching frequencies can be switched. The semi-conductor relays are delivered 100% functionally tested.
