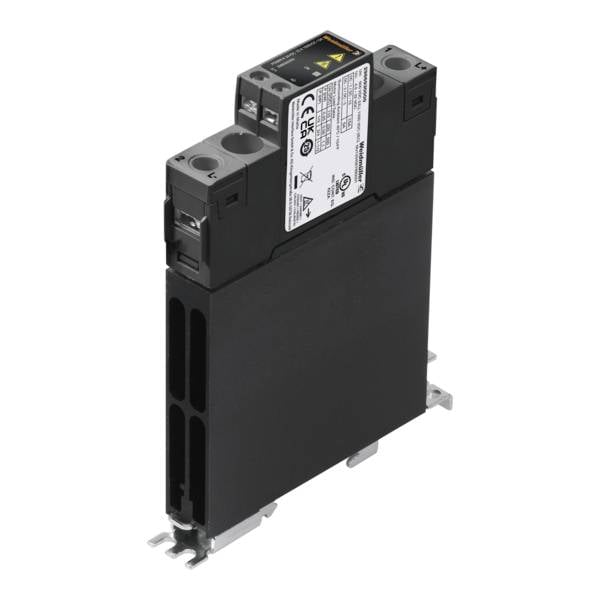

Weidmüller SSC 2986930000 75 A Switching voltage (max.): 1000 V DC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSC
Control voltage (min.)
4.5 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
1000 V DC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
SSC
- Type
PSSRN K 24VDC 1D K 1000VDC 15A
- Connection
Screws
- Control voltage (min.)
4.5 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
4.5 - 32 V DC
- Switching voltage (min.)
20.4 V DC
- Switching voltage (max.)
1000 V DC
- Current load (max.)
75 A
- Output voltage (max.)
1000 V DC
- Max. output current
75 A
- Contact type
1 maker
IP20
- Width
17.8 mm
- Depth
140.5 mm
- Permanent current (max.)
15 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748966 Weidmüller SSC 2986930000 75 A Switching voltage (max.): 1000 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748966 Weidmüller SSC 2986930000 75 A Switching voltage (max.): 1000 V DC 1 pc(s)
Description
A semiconductor contactor is used for the wear-free and noiseless switching of loads up to 75 A in the automation technology. Control and load circuits are electrically isolated. They are available in different designs and with and without mounted heat sink. By the semiconductor technology, loads with a higher switching frequencies can be switched. The semi-conductor relays are delivered 100% functionally tested.
