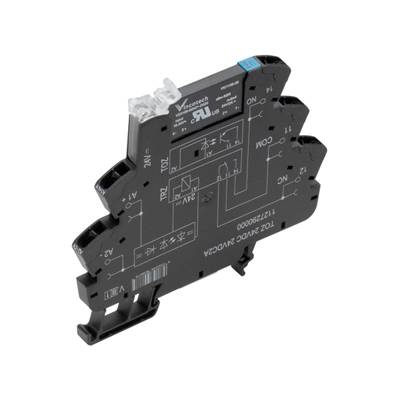

Weidmüller SSR 1127030000 0.1 A Switching voltage (max.): 48 V DC 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
SSR
Control voltage (min.)
5 V DC
Control voltage (max.)
5 V DC
Switching voltage (max.)
48 V DC
Datasheet (PDF)
Highlights & Details
Solid state relays
- Industrial packaging, pack of 10
Technical specifications
- Storage temperature, max. 70 °C.
- Storage temperature, min.: -40 °C
- Status indicator: Green LED
- Switch-on delay: ≤ 10 µs
- Switch-off delay: ≤ 70 µs
- Voltage drop at max. load: ≤ 1 V.
- Leakage current < 10 µA
- Short-circuit proof: No.
- Colour, black
- Rated voltage: 300 V
- Over voltage category III
- Creepage and air distance control side - load side: ≥ 5.5 mm
- Surge voltage 6 kV (1.2/50 µs)
- Humidity: 5...95 % rel. humidity, Tu = 40 °C, no condensation
- MTTF: 3,920 years
- On/off voltage 2.7 V/1.65 V DC
- Protection circuit: Free-wheeling diode, reverse polarity protection
- min Switching current 500 µA
- Protective circuit on load side: Snubber diode
- Mounting rail TS 35
- Flammability class according to UL 94: V-0
- Pollution level: 2
- Electrical strength, control side - load side: 2.5 kVeff
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.14 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 14
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, min. 0.14 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, fine strand, min. (AWG) AWG 26
- Conductor cross-section, fine strand, max. (AWG): AWG 14
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.14 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.14 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Max. Switching frequency (DC control voltage): 10 Hz
- Conductor type: Rigid copper conductors, fine-wired copper conductors
- On/off current: 1.1 mA / 0.26 mA DC
- Coil voltage of spare relay different from the nominal control voltage: No.
- Coil voltage of spare relay 5 V DC
- Packaging type
Package
- Product type
SSR
- Type
TOZ 5VDC 48VDC0,1A
- Connection
Pull spring
- Control voltage (min.)
5 V DC
- Control voltage (max.)
5 V DC
- Control voltage range
5 - 5 V DC
- Control current (max.)
7 mA
- Switching voltage (min.)
0 V DC
- Switching voltage (max.)
48 V DC
- Current load (max.)
0.1 A
- Max. switching capacity
35 mW
- Output voltage (min.)
3 V DC
- Output voltage (max.)
48 V DC
- Max. output current
100 mA
- Contact type
1 maker
- Min. temperature
-20 °C
- Max. temperature
+60 °C
IP20
- Width
6.4 mm
- Height
90.5 mm
- Depth
87.8 mm
- Weight
29 g
- Industrial packaging
Yes
- Permanent current (max.)
0.1 A
- Content
10 pc(s)
- Nominal control voltage
5 V DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 306907 Weidmüller SSR 1127030000 0.1 A Switching voltage (max.): 48 V DC 10 pc(s)
User & Safety Instructions
User & Safety Instructions 306907 Weidmüller SSR 1127030000 0.1 A Switching voltage (max.): 48 V DC 10 pc(s)
Description
Solid state relays. Terms Series, nominal control voltage: 5 V DC ± 20%, nominal switching voltage: 3V.. .48 V DC, nominal switching current 100 mA, spring-cage connection. Terms Series Solid-state relay comes complete modules 3...48 V DC 0.1 A output variants consisting of a solid-state relay and a base, with AC/DC/UC-input with spring-cage connection method in 6.4 mm width. The ejector with light control geometry (status display).
