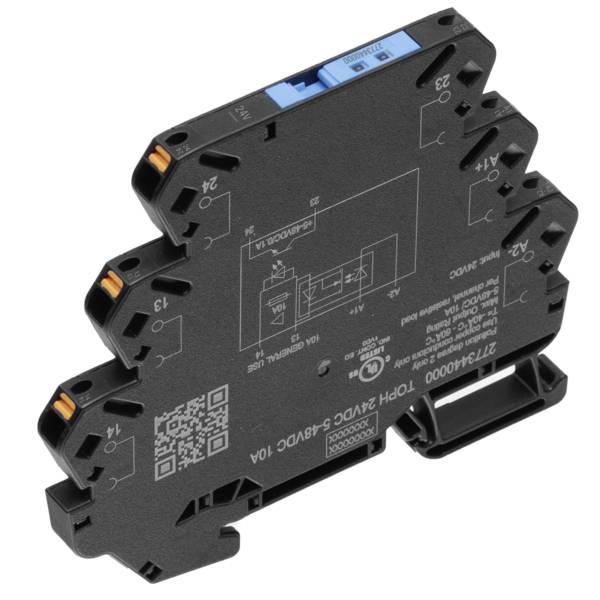

Weidmüller SSR 2773440000 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
19.2 V DC
Control voltage (max.)
28.8 V DC
Output voltage (max.)
48 V DC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
TOPH 24VDC 5-48VDC10A
- Connection
Push-in spring-loaded terminal
- Control voltage (min.)
19.2 V DC
- Control voltage (max.)
28.8 V DC
- Control voltage range
19.2 - 28.8 V DC
- Output voltage (min.)
5 V DC
- Output voltage (max.)
48 V DC
- Permanent current (max.)
10 A
- Content
1 pc(s)
- Nominal control voltage
24 V DC
DC
Other
19.2-28.8 V
5-48 V
TRUE
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748665 Weidmüller SSR 2773440000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748665 Weidmüller SSR 2773440000 1 pc(s)
Description
Semiconductor relay for switching and amplifying digital signals. The relay operates wear-free and noiseless. Control circuit and load circuit are electrically isolated.
