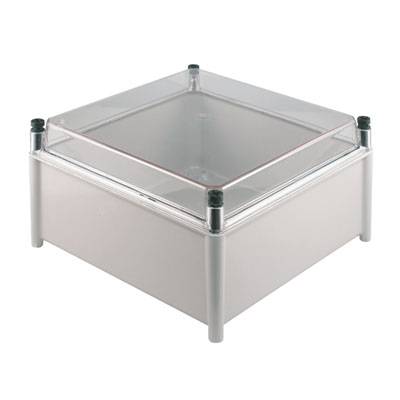

Weidmüller TBF 30/30/18 TRSP 0500700000 Universal enclosure 302 x 302 x 175 Polyester Light grey, Transparent 1 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Polyester
IP rating
IP66
Width
302 mm
Height
302 mm
Datasheet (PDF)
Highlights & Details
Cases & Enclosures
- Trsp TBF 30/30/18
- This text is machine translated.
Technical specifications
- Max. operating temperature: 130 °C
- Operating temperature, min. -50 °C.
- Flammability class according to UL 94: V-2
- Cover attachment: Cross-head nylon screws
- Sealing material: Polyurethane
- Torque Lid screws 1.5 Nm
- Mounting: 4 or 6 stud bolts M6 internal thread
- Housing mounting: 6.5 mm through housing base
- Impact resistance: IK08 according to IEC 62208, IK10 according to IEC 62262
- Product type
Universal enclosure
- Material
Polyester
IP66
- Factory colour
Light grey
Transparent
- Width
302 mm
- Height
302 mm
- Content
1 pc(s)
- Dim
(W x H x D) 302 x 302 x 175 mm
- RoHS-compliant
Yes
- Weight
2270 g
- Depth
175 mm
- Type
TBF 30/30/18 TRSP
Grey
302
302 mm
175 mm
7035
FALSE
0
0
TRUE
FALSE
GRP (Glass fiber reinforced plastic)
Plastic
IK08
IP66
TRUE
FALSE
FALSE
FALSE
Untreated
FALSE
TRUE
FALSE
FALSE
- UKCA
yes
