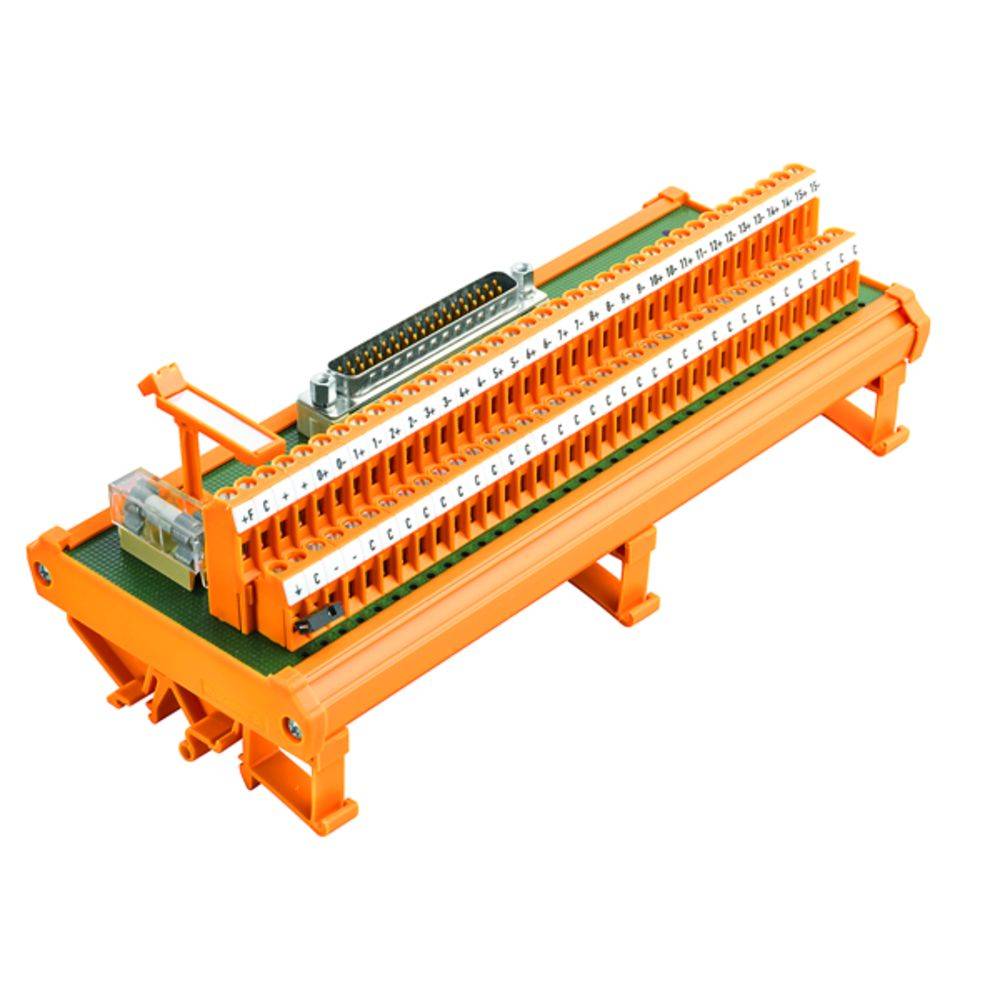

Weidmüller Transfer module 1 pc(s) RS 16AIO DP SD Z 50, 25 V DC, V AC (max)
EAN:
Part number:
Item no:
Product type
Transfer module
Connection
Pull spring
Max. operating voltage
50 V DC
25 V AC
Type
RS 16AIO DP SD Z
Operating voltage
50, 25 V DC, V AC (max)
Datasheet (PDF)
Technical specifications
- LED status indicator per channel: No.
- Power LED status: No.
- Separation per channel: No.
- Voltage measuring point: No.
- Current measurement test points: No.
- Max. Current for ground 3.15 A.
- Storage temperature: -40°C to +60 °C.
- Clamping range: 0.13 mm² - 2.5 mm²
- Type of test point: No.
- 3.15 A power supply fuse
- Connection (control side): SUB-D plug
- Number of pins (control side): 37-pin connector
- Connection (field side): LMNZF 5.08 mm
- Protective conductor connection: Shield connection in SUB-D plug connector
- Maximum current per channel: 0.5 A.
- Wiring system: 2-wire
- Stripped length: 6 mm
- Product type
Transfer module
- Type
RS 16AIO DP SD Z
- Connection
Pull spring
- Max. operating voltage
50 V DC
25 V AC
- Operating voltage
50, 25 V DC, V AC (max)
- Min. temperature
-20 °C
- Max. temperature
+50 °C
- Width
87 mm
- Height
72 mm
- Length
205 mm
- Dim
(L x W x H) 205 x 87 x 72 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202478 Weidmüller Transfer module 1 pc(s) RS 16AIO DP SD Z 50, 25 V DC, V AC (max)
User & Safety Instructions
User & Safety Instructions 202478 Weidmüller Transfer module 1 pc(s) RS 16AIO DP SD Z 50, 25 V DC, V AC (max)
Description
Transfer module. Interface, RS, 2-wire, spring-cage connection. The analog interfaces are equipped with SubD plug connectors and thus offer a sufficient for analog signal transmission required shielding. There is also a very useful isolators and test sockets for the measurement of voltage or current.
