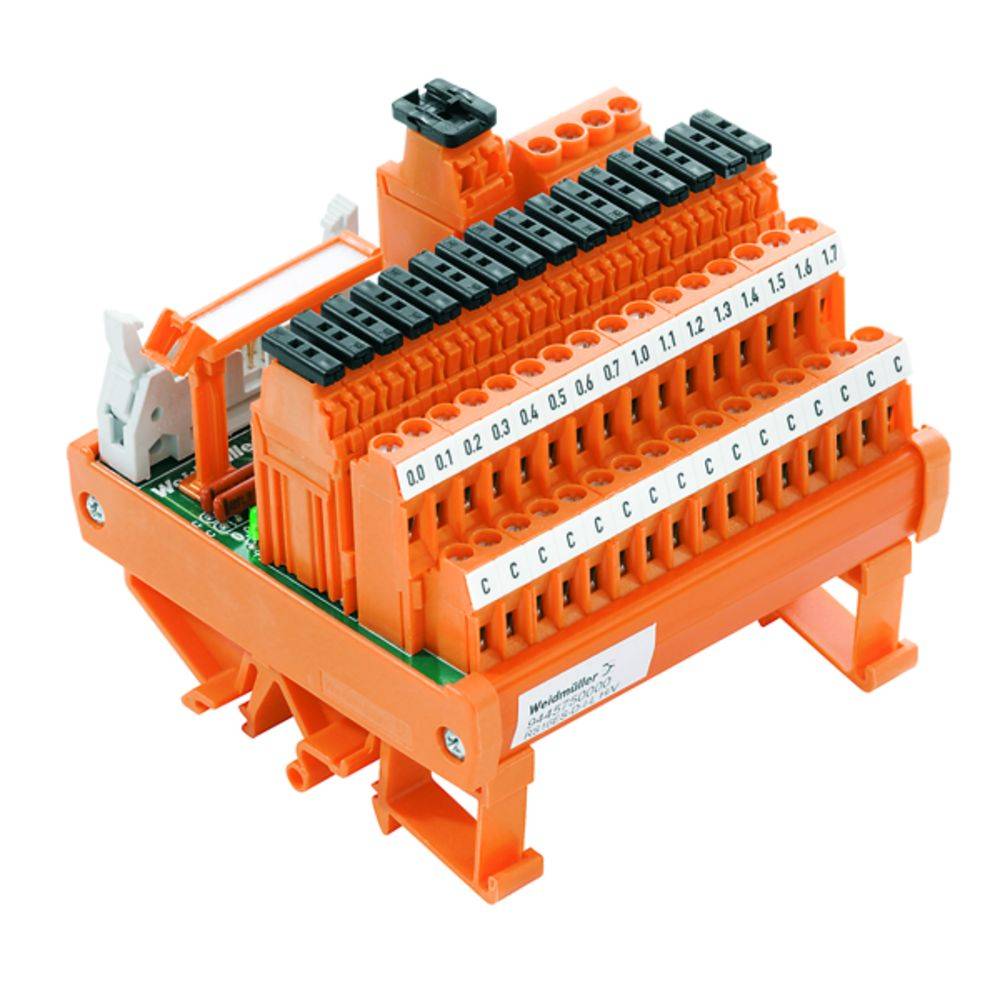

Weidmüller Transfer module 1 pc(s) RS 16IO 2W I H Z 50, 25 V DC, V AC (max)
EAN:
Part number:
Item no:
Product type
Transfer module
Connection
Pull spring
Max. operating voltage
50 V DC
25 V AC
Type
RS 16IO 2W I H Z
Operating voltage
50, 25 V DC, V AC (max)
Datasheet (PDF)
Technical specifications
- LED status indicator per channel: No.
- Supply voltage LED status: Yellow
- Separation per channel: Yes
- Storage temperature: -40°C to +60 °C.
- Clamping range: 0.13 mm² - 2.5 mm²
- Type of test point: No.
- 3.15 A power supply fuse
- Connector (control side): Connector
- Number of pins (control side): 20-pin connector
- Connection (field side): LM2NZF 5.08 mm
- Maximum current per channel: 1 A.
- Wiring system: 2-wire
- Stripped length: 7 mm
- Product type
Transfer module
- Type
RS 16IO 2W I H Z
- Connection
Pull spring
- Max. operating voltage
50 V DC
25 V AC
- Operating voltage
50, 25 V DC, V AC (max)
- Min. temperature
-25 °C
- Max. temperature
+50 °C
- Width
87 mm
- Height
72 mm
- Length
95 mm
- Dim
(L x W x H) 95 x 87 x 72 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202619 Weidmüller Transfer module 1 pc(s) RS 16IO 2W I H Z 50, 25 V DC, V AC (max)
User & Safety Instructions
User & Safety Instructions 202619 Weidmüller Transfer module 1 pc(s) RS 16IO 2W I H Z 50, 25 V DC, V AC (max)
Description
Transfer module. Interface, RS, separator, 2-wire, spring-cage connection. The direct digital input/output interfaces are equipped with flat cable connectors, in order to enable a simple connection.
