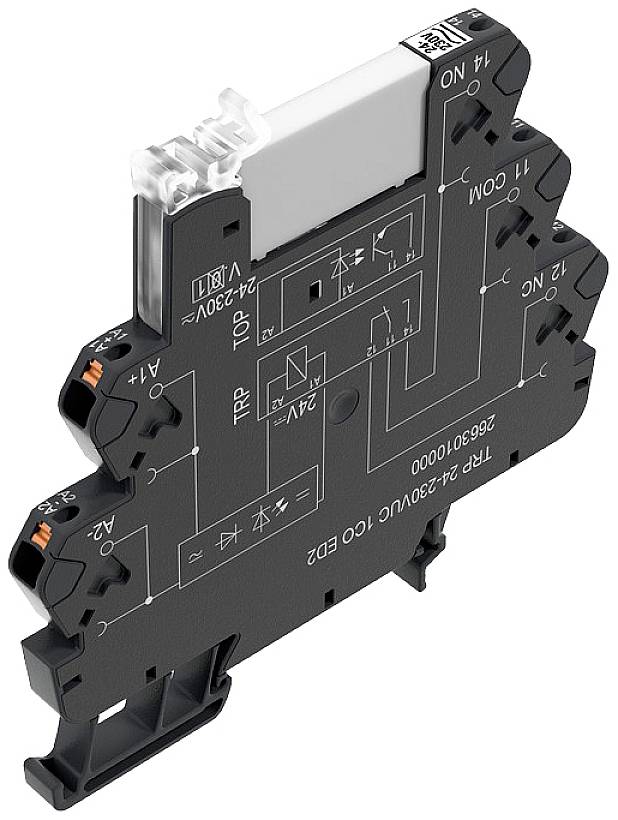

Weidmüller TRP 24-230VUC 1CO ED2 Crossbar switch 6 A 1 change-over 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
1 change-over
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Type
TRP 24-230VUC 1CO ED2
Technical specifications
- Complete unit with base: YesSwitching behavior of the drive: MonostableDrive, polarity: Non-polarizedType of switch contact: Single contact
- Product type
Crossbar switch
- Type
TRP 24-230VUC 1CO ED2
- Connection
Jack connector
- Min. pick-up voltage
21.6 V AC
21.6 V DC
- Max. pick-up voltage
253 V AC
253 V DC
- Response time
30 ms
- Fall time
130 ms
- Contact type
1 change-over
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
5 x 106 switches
- Features
+ LED display
IP20
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Depth
87.8 mm
- Width
6.4 mm
- Height
89.4 mm
- Dim
(W x H x D) 6.4 x 89.4 x 87.8 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
