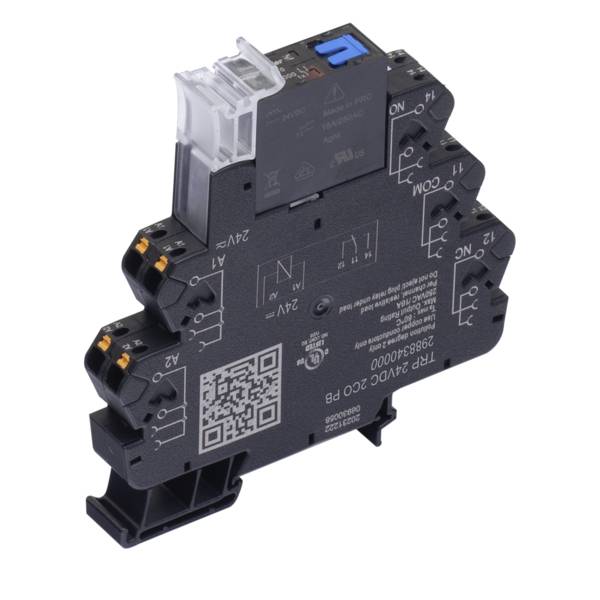

Weidmüller TRP 24VDC 2CO PB Crossbar switch 24 V DC 8 A 2 change-overs 5 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
8 A
Datasheet (PDF)
Technical specifications
- Product type
Crossbar switch
- Type
TRP 24VDC 2CO PB
- Connection
Jack connector
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
8 A
- Features
+ LED display
IP20
- Depth
97.5 mm
- Width
12.8 mm
- Dim
(W x D) 12.8 mm x 97.5 mm
- Content
5 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750829 Weidmüller TRP 24VDC 2CO PB Crossbar switch 24 V DC 8 A 2 change-overs 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3750829 Weidmüller TRP 24VDC 2CO PB Crossbar switch 24 V DC 8 A 2 change-overs 5 pc(s)
Description
Assembly comprising plug-in relay and plug base. Control circuit and load circuit are electrically isolated.
