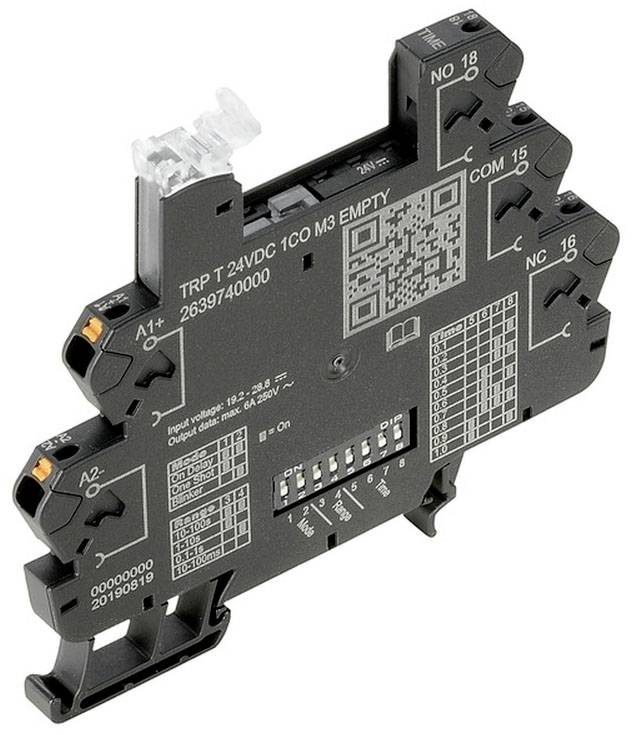

Weidmüller TRP T 24VDC 1CO M3 EMPTY TDR 24 V DC 10 A 1 change-over 10 pc(s)
EAN:
Part number:
Item no:
Product type
TDR
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
10 A
Technical specifications
- Mounting rail: TS 35
- flammability class according to UL 94: V-0
- Overvoltage category: III
- Pollution degree: 2
- withstand voltage input - output: 4 kVeff / 1 min.
- Surge voltage: 6 kV (1.2/50 µs)
- Stripping length Rated connection: 8 mm
- Clamping range, Rated connection: 1.5 mm²
- Clamping range, min.: 0.14 mm²
- Clamping range, max.: 2.5 mm²
- conductor cross-section AWG, min.: 26
- conductor cross-section AWG, max.: 14
- conductor cross-section, single-wire, min.: mm²
- conductor cross-section, single-wire, max.: 2.5 mm²
- conductor cross-section, fine mm²
- wire cross-section: 0.14 mm² conductor cross-section: 2.5. 0.4 x 2.5 mm
- Product type
TDR
- Type
TRP T 24VDC 1CO M3 EMPTY
- Connection
Push-in button
- Factory colour
Black
- Contact type
1 change-over
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
10 A
- Creepage distance (coil/clips)
6 mm
- Features
+ LED display
+ flyback diode
w/o test button
IP20
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- Depth
88 mm
- Width
6.4 mm
- Height
90 mm
- Dim
(W x H x D) 6.4 x 90 x 88 mm
- Content
10 pc(s)
- Weight
26 g
- UKCA
not relevant
