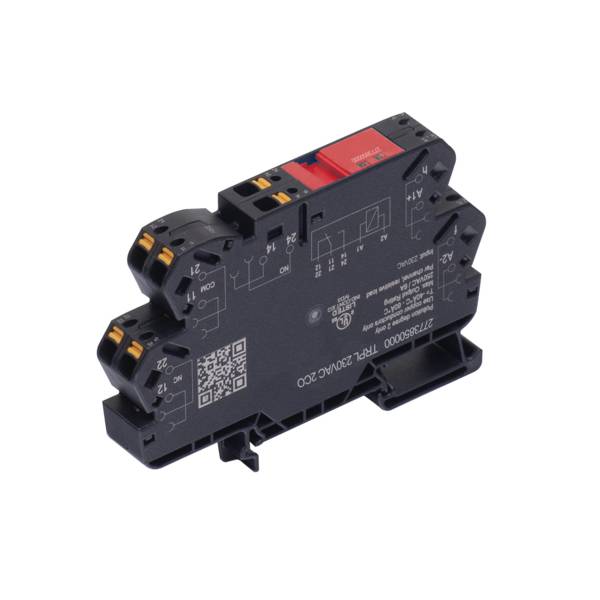

Weidmüller TRPL 230VAC 2CO Crossbar switch 230 V AC 6 A 2 change-overs 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
230 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
6 A
Datasheet (PDF)
Technical specifications
- Product type
Crossbar switch
- Type
TRPL 230VAC 2CO
- Connection
Jack connector
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
230 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Features
+ LED display
IP20
- Depth
62.5 mm
- Width
12.8 mm
- Dim
(W x D) 12.8 mm x 62.5 mm
- Content
10 pc(s)
6 A
12.8 mm
89.4 mm
62.5 mm
FALSE
Polarized
Mono stable
Single contact
TRUE
Plug-in connection
218.5-241.5 V
218.5-241.5 V
Nickel
IP20
TRUE
Silver nickel (AgNi)
250-250 V
250-250 V
0
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750260 Weidmüller TRPL 230VAC 2CO Crossbar switch 230 V AC 6 A 2 change-overs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3750260 Weidmüller TRPL 230VAC 2CO Crossbar switch 230 V AC 6 A 2 change-overs 10 pc(s)
Description
Assembly comprising plug-in relay and plug base. Control circuit and load circuit are electrically isolated.
