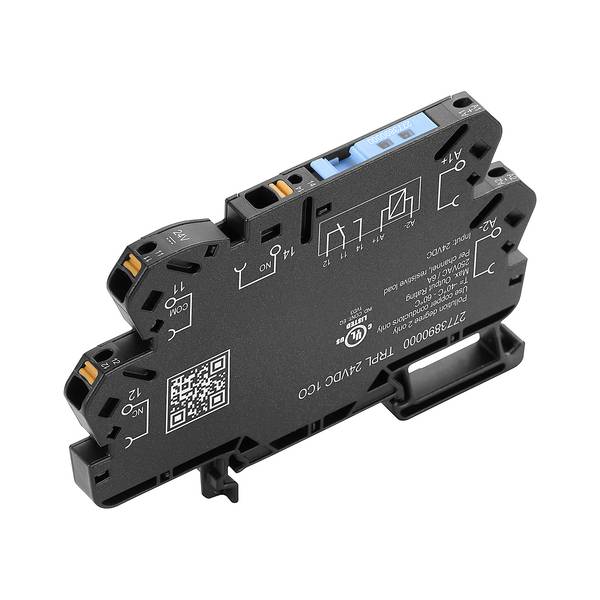

Weidmüller TRPL 24VDC 1CO Crossbar switch 24 V DC 6 A 1 change-over 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Datasheet (PDF)
Technical specifications
- Product type
Crossbar switch
- Type
TRPL 24VDC 1CO
- Connection
Jack connector
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Features
+ LED display
IP20
- Depth
62.5 mm
- Width
6.4 mm
- Dim
(W x D) 6.4 mm x 62.5 mm
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750264 Weidmüller TRPL 24VDC 1CO Crossbar switch 24 V DC 6 A 1 change-over 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3750264 Weidmüller TRPL 24VDC 1CO Crossbar switch 24 V DC 6 A 1 change-over 10 pc(s)
Description
Assembly comprising plug-in relay and plug base. Control circuit and load circuit are electrically isolated.
