Weidmüller TRPL 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
1 maker
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Datasheet (PDF)
Technical specifications
- Product type
Crossbar switch
- Type
TRPL 24VDC 1NO TRAK
- Connection
Jack connector
- Contact type
1 maker
- Contact material
AgSnO2
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Features
+ LED display
IP20
- Depth
62.5 mm
- Width
6.4 mm
- Dim
(W x D) 6.4 mm x 62.5 mm
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750273 Weidmüller TRPL 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3750273 Weidmüller TRPL 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
Description

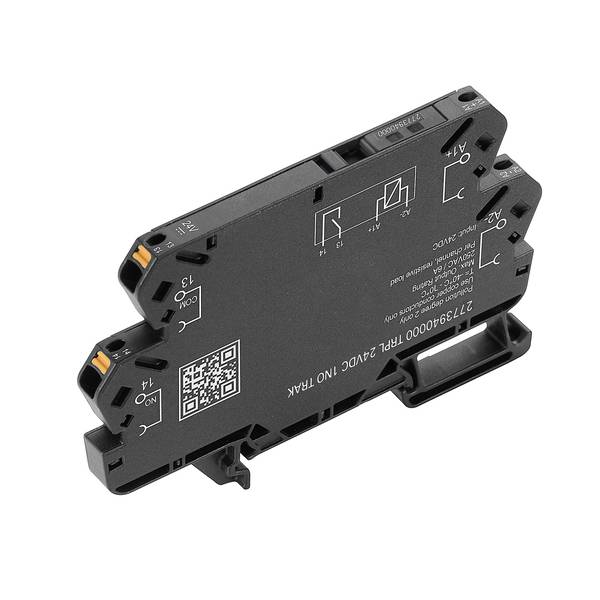

Assembly comprising plug-in relay and plug base. Control circuit and load circuit are electrically isolated.
