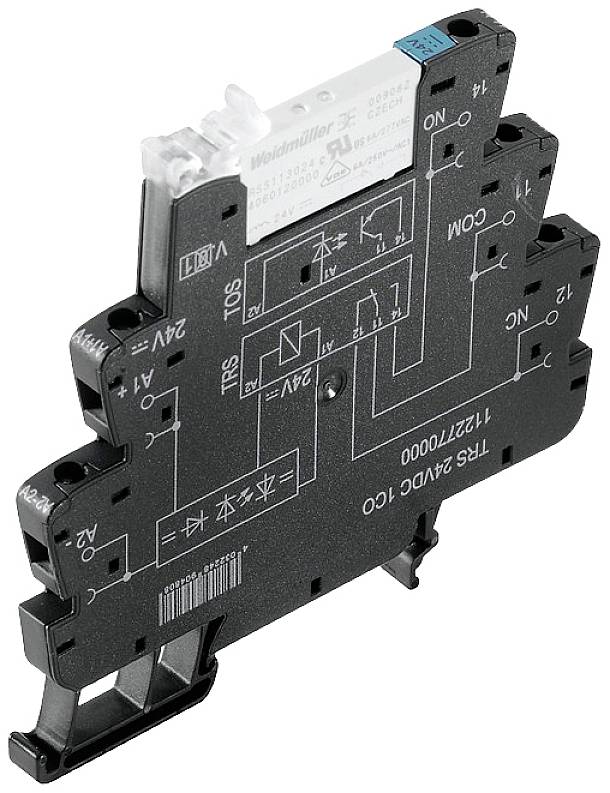

Weidmüller TRS 24VDC 1CO C1D2 Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 1 change-over 10 pc
EAN:
Part number:
Item no:
Product type
Relay component
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Switching current (max.)
6 A
Datasheet (PDF)
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 6 ms
- Switch-off delay: ≤ 16 ms
- min Switching capacity: 1 mA at 24 V, 10 mA at 12 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 4 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.14 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 14
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, min. 0.14 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.25 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 2.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.25 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 2.5 mm²
- Blade dimension: GR. PH0
- Product type
Relay component
- Type
TRS 24VDC 1CO C1D2
- Connection
Screw terminal
- Factory colour
Black
- Min. pick-up voltage
19.2 V DC
- Max. pick-up voltage
16 V DC
- Response time
6 ms
- Fall time
16 ms
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
5 x 10 6 circuits
- Creepage distance (coil/clips)
5.5 mm
- Features
+ LED
IP20
- Max. temperature
60 °C
- Min. temperature
-40 °C
- Length
87.8 mm
- Width
6.4 mm
- Height
89.6 mm
- Dim
(L x W x H) 87.8 x 6.4 x 89.6 mm
- Content
10 pc(s)
- Weight
30.82 g
- RoHS-compliant
Yes
- UKCA
yes
