Name: Weidmüller TRS 24VDC 1NO HCP Relay component Nominal voltage: 24 V DC Switching current (max.): 16 A 1 maker Package 10
Brand: Weidmüller
SKU: 1951684

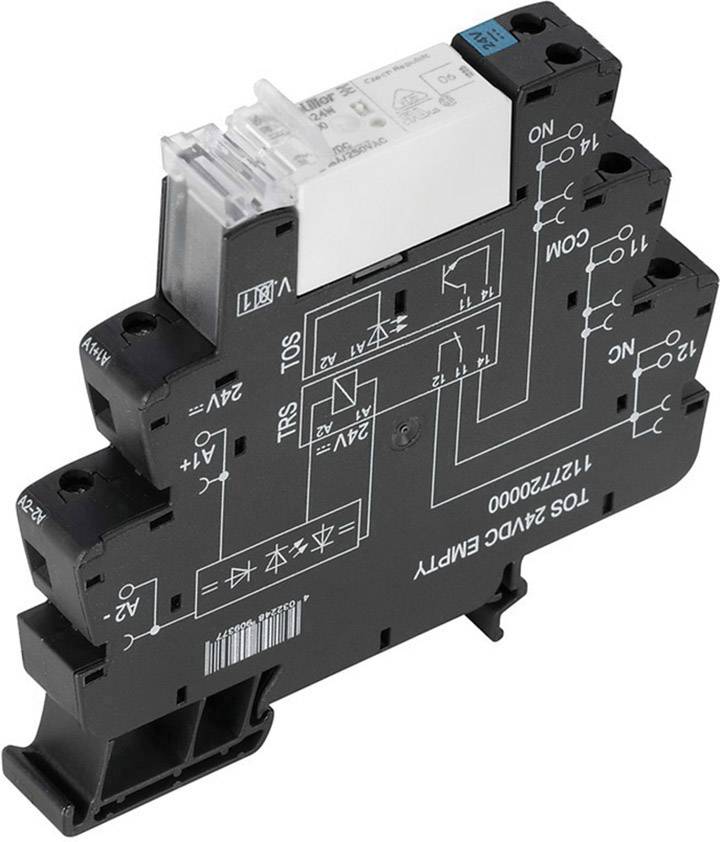

Electrical relay module with multiple terminal blocks and printed circuit diagram for installation in electrical control circuits.

Image similar

Packaging type

Package

Product type

Relay component

Contact type

1 maker

Nominal voltage

24 V DC

Switching voltage (max.)

250 V AC

250 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Status indicator: Green LED
Switch-on delay: ≤ 7 ms
Switch-off delay: ≤ 16 ms
min Switching capacity 1 W
Max. Switching frequency at nominal load 0.1 Hz
Mounting rail TS 35
Test button: No.
Mechanical switch position indicator: No.
Over voltage category III
Pollution level: 2
Voltage strength input - output: 1.2 kVeff / 5 s.
Wire stripping length rated connection: 8 mm
Clamping range, rated connection 1.5 mm²
Clamping range, min. 0.14 mm²
Clamping range, max. 2.5 mm²
Conductor cross-section AWG, min. AWG 26
Conductor cross-section AWG, max. AWG 14
Conductor cross-section, single-wire, min. 0.14 mm²
Conductor cross-section, single-wire, max. 2.5 mm²
Conductor cross-section, fine strand, min. 0.14 mm²
Conductor cross-section, fine strand, max. 2.5 mm²
Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.25 mm²
Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 2.5 mm²
Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.25 mm²
Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 2.5 mm²
Blade dimension: GR. PH0

Packaging type: Package

Product type: Relay component

Type: TRS 24VDC 1NO HCP

Connection: Screw terminal

Factory colour: Black

Max. pick-up voltage: 18 V DC

Contact type: 1 maker

Contact material: AgSnO2 + W

Nominal voltage: 24 V DC

Switching voltage (max.): 250 V AC
250 V DC

Switching current (max.): 16 A

Max. switching capacity: 4000 VA
384 W

Durability: 5 x 10⁶ circuits

Creepage distance (coil/clips): 5.5 mm

: IP20

Max. temperature: 60 °C

Min. temperature: -40 °C

Length: 87.8 mm

Width: 12.8 mm

Height: 89.6 mm

Dim: (L x W x H) 87.8 x 12.8 x 89.6 mm

Content: 10 pc(s)

Weight: 56 g

RoHS-compliant: Yes

UKCA: not relevant
