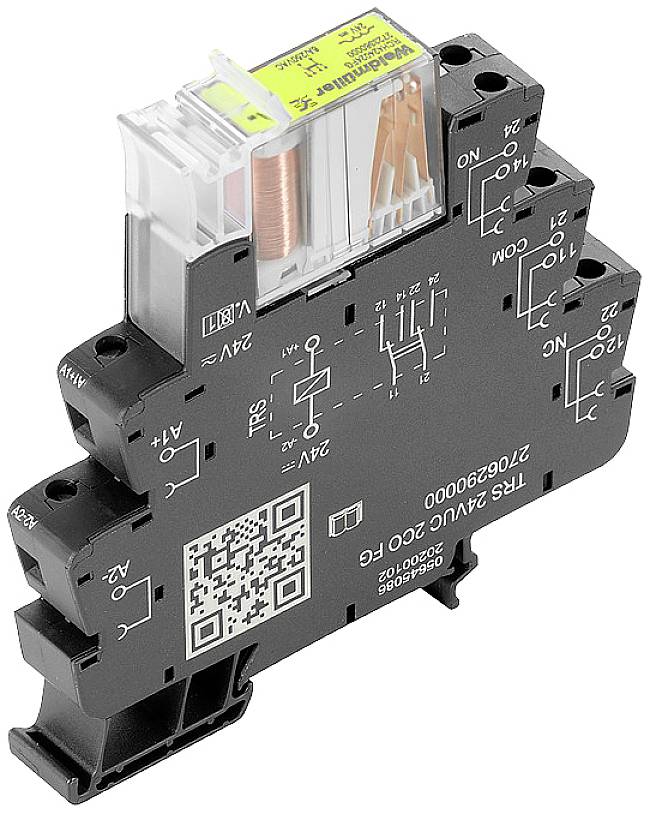

Weidmüller TRS 24VUC 2CO FG Crossbar switch 6 A 2 change-overs 5 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Type
TRS 24VUC 2CO FG
Technical specifications
- Complete unit with base: YesSwitching behavior of the drive: MonostableDrive, polarity: Non-polarizedType of switch contact: Single contact
- Product type
Crossbar switch
- Type
TRS 24VUC 2CO FG
- Connection
Screws
- Max. pick-up voltage
24 V AC
24 V DC
- Response time
30 ms
- Fall time
20 ms
- Contact type
2 change-overs
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
10 x 106 switches
- Features
+ LED display
IP20
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Depth
87.8 mm
- Width
12.8 mm
- Height
97.5 mm
- Dim
(W x H x D) 12.8 x 97.5 x 87.8 mm
- Content
5 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
