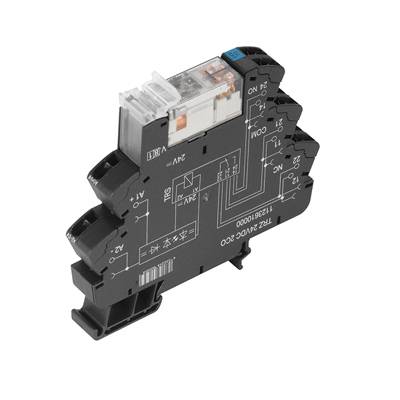

Weidmüller TRZ 230VAC RC 2CO Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
230 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
8 A
Datasheet (PDF)
Highlights & Details
Relay coupler
- Industrial packaging, pack of 10
Technical specifications
- Humidity: 5...95 % rel. humidity, Tu = 40 °C, no condensation
- Storage temperature: -40 °C…85 °C
- Nominal current AC 8.8 mA
- Rated output 2.3 VA
- Actuation/fall voltage type: 127 V / 45 V AC
- Status indicator: Green LED
- Nominal switching voltage 250 V AC
- Inrush current 15 A / 4 s.
- Switching power DC (ohmic), max. 192 W @ 24 V
- min Switching power 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Rated voltage: 300 V
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 1.2 kVeff / 5 s.
- Electrical strength of adjacent contacts: 2.5 kVeff
- Open contact withstand voltage 1 kVeff/1 min.
- Surge voltage 6 kV (1.2/50 µs)
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.14 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, min. 0.14 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.14 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.14 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Switching voltage DC, max. 250 V
- Switch-off delay: ≤ 16 ms
- RC filter 94 Ω / 100 nF
- Conductor type: Rigid copper conductors, fine-wired copper conductors
- Pick-up/drop-off current, type: 5 mA / 2 mA AC
- Coil voltage of spare relay different from the nominal control voltage: Yes
- Coil voltage spare relay 110 V DC
- Product type
Crossbar switch
- Type
TRZ 230VAC RC 2CO
- Connection
Pull spring
- Factory colour
Black
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
230 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Max. switching capacity
2000 VA
- Durability
30 x 106 cycles
- Creepage distance (coil/clips)
5.5 mm
IP20
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Depth
87.8 mm
- Width
12.8 mm
- Height
90.5 mm
- Dim
(W x H x D) 12.8 x 90.5 x 87.8 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
57.6 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 306810 Weidmüller TRZ 230VAC RC 2CO Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
User & Safety Instructions
User & Safety Instructions 306810 Weidmüller TRZ 230VAC RC 2CO Crossbar switch 230 V AC 8 A 2 change-overs 10 pc(s)
Description
Relay coupler. Terms Series, number of contacts: 2, Co, AgNi, nominal control voltage: 230V AC ±5%, Continuous current: 8 A, tension-spring connection. Terms Series Relay coupler 2 changer complete modules consisting of a relay and a base with AC/DC/UC-coils with spring-cage connection. The ejector with light control geometry (status display).
