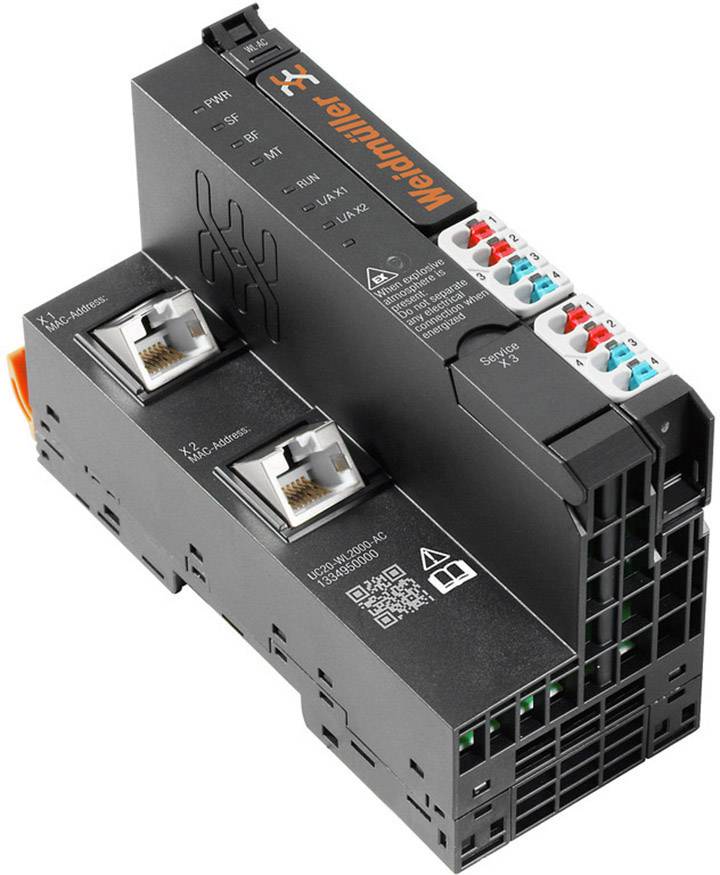

Weidmüller UC20-WL2000-AC 1334950000 PLC fieldbus connector
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting dimensions Height: 128 mm
- Operating temperature, max.: 55 °C
- Operating temperature, min.: -20 °C
- Flammability class according to UL 94: V-0
- Connection type: Push IN
- module type: Control
- interface: 2x Ethernet TCP/IP, 1x Micro USB
- Current consumption from IIN (power segment of the field bus coupler), type: 116 mA
- Product type
PLC fieldbus connector
- Operating voltage
24 V DC (max)
- Max. operating voltage
24 V DC
- Height
120 mm
- Length
76 mm
- Width
52 mm
IP20
- Dim
(L x W x H) 76 x 52 x 120 mm
- Display
No
- Manufacturer part #
1334950000
- Type
UC20-WL2000-AC
- Real-time clock
Yes (built-in)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Weight
232 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2178038 Weidmüller UC20-WL2000-AC 1334950000 PLC fieldbus connector
User & Safety Instructions
User & Safety Instructions 2178038 Weidmüller UC20-WL2000-AC 1334950000 PLC fieldbus connector
Description
For modern IoT applications, automation technology must always become more powerful and versatile. U-mation offers you a coordinated hardware portfolio, U-control 2000 is one of the most modern and compact controllers on the market and is the heart of our hardware offering. U-control 2000 forms the basis for the use of our engineering solutions u-create web, studio and IoT. The modular design of the controller is based on the Remote I/OSystem u-remote and enables the expansion with other components from the u-mation family as required.
