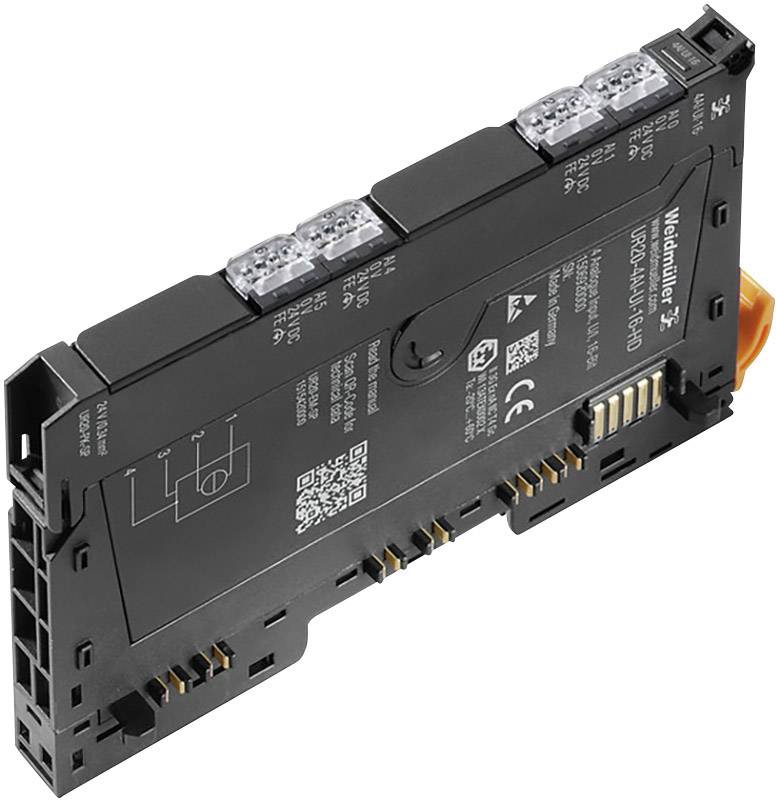

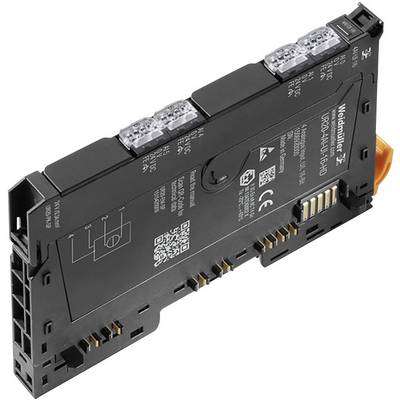

Buy Weidmüller UR20-4AI-UI-16-HD 1506920000 PLC input module 24 V DC

Image similar

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Mounting dimensions height: 128 mm
Storage temperature: -40 °C ... +85 °C
flammability class according to UL 94: V-0
Test voltage: 500 V
shock: 15 g over 11 ms, half sine wave, according to IEC 60068-2-27
Pollution degree: 2
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude acc. To IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration according to IEC 60068-2-6
Overvoltage category: II
conductor cross-section, single-wire, max.: 0.35 mm²
conductor cross-section, single-wire, max. (AWG): AWG 22
conductor cross-section, single-wire, min.: 0.14 mm²
conductor cross-section, single-wire, min. (AWG): AWG 26
conductor cross-section, fine-wired, max.: 0.35 mm²
conductor cross-section, fine-wired, max. (AWG): AWG 22
conductor cross-section, fine-wired, min.: 0.14 mm²
conductor cross-section, fine-wired, min. (AWG): AWG 26
Single-channel diagnostics: No
Module diagnostics: Yes
Sensor connection: 2-conductor, 3-conductor, 3-conductor + FE
Fieldbus protocol: CANopen, DeviceNet, EtherCAT, Ethernet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
Galvanic separation: DC 500 V between the current module
type: Analogue input module
interface: U-remote system bus
transmission rate System bus, max.: 48 Mbit
power consumption from the field bus segment. 8 mA
