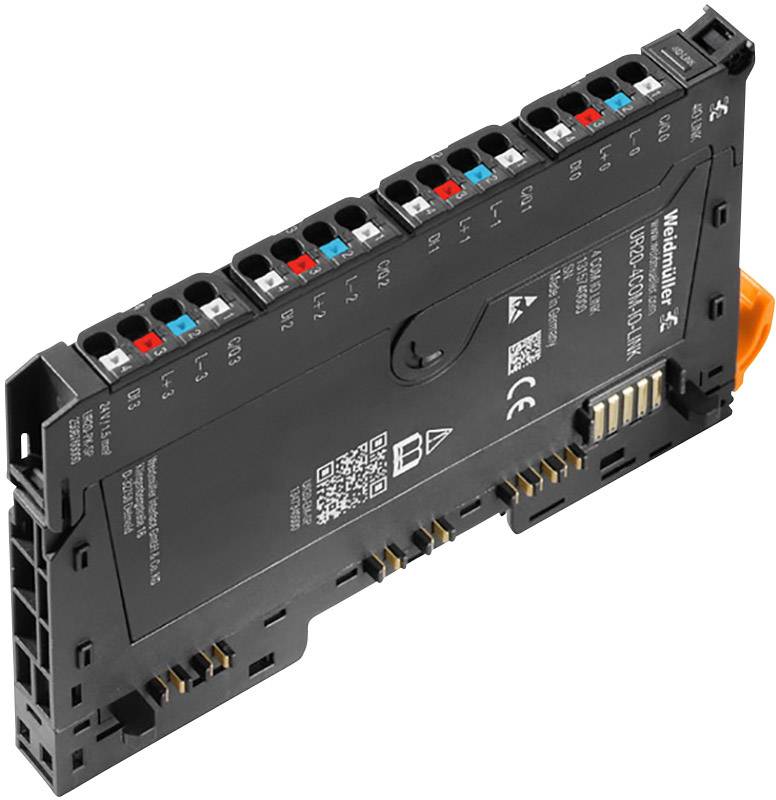

Buy Weidmüller UR20-4COM-IO-LINK 1315740000 PLC input module 24 V DC

Image similar

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Mounting dimensions Height: 128 mm
Operating temperature, max.: 60 °C
Operating temperature, min.: -20 °C
Storage temperature: -40 °C ... +85 °C
flammability class according to UL 94: V-0
Test voltage: 500 V
shock: 15 g over 11 ms, half sine wave, according to IEC 60068-2-27
Pollution degree: 2
Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude acc. To IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration according to IEC 60068-2-6
Overvoltage category: II
Connection type: Push IN
conductor cross-section, single-wire, max.: 1.5 mm²
conductor cross-section, single-wire, max. (AWG): AWG 16
conductor cross-section, single-wire, min.: 0.14 mm²
conductor cross-section, single-wire, min. (AWG): AWG 26
conductor cross-section, fine-wired, max.: 1.5 mm²
conductor cross-section, fine-wired, max. (AWG): AWG 16
conductor cross-section, fine-wired, min.: 0.14 mm²
conductor cross-section, fine-wired, min. (AWG): AWG 26
Single-channel diagnostics: Yes
Module diagnostics: Yes
Input voltage High:> 11 V
Input voltage Low:< 5 V
Fieldbus protocol: CANopen, DeviceNet, EtherCAT, Ethernet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
Galvanic separation: DC 500 V between current paths
Module type: Function module
Interface: U-remote system bus
Transmission rate System bus, max.: 48 Mbit
current consumption from IIN (power segment of the fieldbus coupler), type: 8 mA
