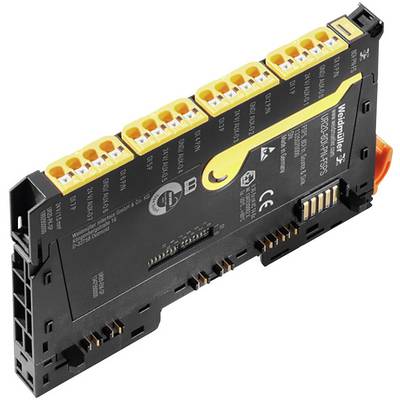

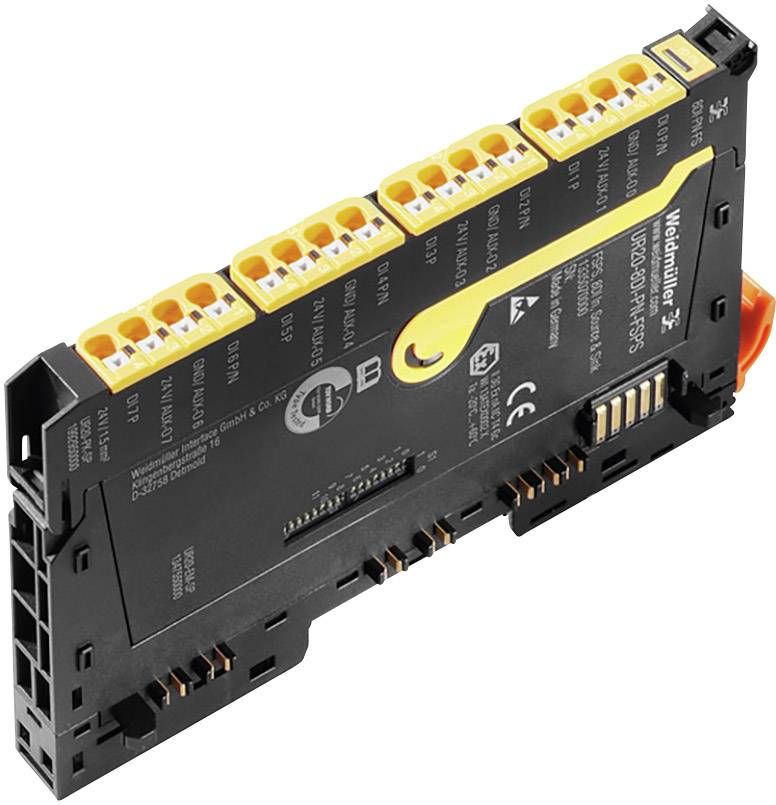

Weidmüller UR20-8DI-PN-FSPS-V2 2464590000 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting dimensions Height: 128 mm
- Operating temperature, max.: 60 °C
- Operating temperature, min.: -20 °C
- Storage temperature: -40 °C ... +85 °C
- flammability class according to UL 94: V-0
- Test voltage: 500 V
- shock: 15 g over 11 ms, half sine wave, according to IEC 60068-2-27
- Pollution degree: 2
- Vibration resistance: 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude acc. To IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration according to IEC 60068-2-6
- Overvoltage category: II
- Connection type: Push IN
- conductor cross-section, single-wire, max.: 1.5 mm²
- conductor cross-section, single-wire, max. (AWG): AWG 16
- conductor cross-section, single-wire, min.: 0.14 mm²
- conductor cross-section, single-wire, min. (AWG): AWG 26
- conductor cross-section, fine-wired, max.: 1.5 mm²
- conductor cross-section, fine-wired, max. (AWG): AWG 16
- conductor cross-section, fine-wired, min.: 0.14 mm²
- conductor cross-section, fine-wired, min. (AWG): AWG 26
- Single-channel diagnostics: Yes
- Module diagnostics: Yes
- Input filter: Configurable
- Input voltage High:> 11 V
- Input voltage Low:< 5 V
- Sensor connection: 2-, 3-, 4-wire
- Sensor supply: Yes
- Fieldbus protocol: PROFINET IRT, PROFIBUS DP-V1
- Galvanic separation: DC 500 V between current paths
- Module type: Safe input module
- Interface: U-remote system bus
- Possible conductor technology: 2 conductors, 4 conductors
- Transfer rate System bus, max.: 48 Mbit
- Power consumption from IIN (power segment of the field bus coupler), type: 8 mA
- Product type
PLC add-on module
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- Operating voltage
24 V DC (max)
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC
- Height
120 mm
- Length
76 mm
- Width
11.5 mm
IP20
- Dim
(L x W x H) 76 x 11.5 x 120 mm
- Manufacturer part #
2464590000
- Type
UR20-8DI-PN-FSPS-V2
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Weight
88.82 g
- No. of outputs (max.)
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1889346 Weidmüller UR20-8DI-PN-FSPS-V2 2464590000 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 1889346 Weidmüller UR20-8DI-PN-FSPS-V2 2464590000 PLC add-on module 24 V DC
Description
Weidmüller u-remote - the innovative remote I/O concept in IP20, which is only intended for the use of the advantages for the user-oriented:
Tailor-made plans, faster, install, secure in operation, standstill. For a much better performance and higher productivity.
The reduction of control cabinets can be reached with u-remote by its narrow design and thanks to lower demand for feed-in modules. A tool-free installation, the modular design as well as the integrated web server to accelerate the installation in control cabinet and machine. Status LEDs directly on the channel as well as on each u-remote module enable reliable diagnosis and quick service.
This text is machine translated.
Tailor-made plans, faster, install, secure in operation, standstill. For a much better performance and higher productivity.
The reduction of control cabinets can be reached with u-remote by its narrow design and thanks to lower demand for feed-in modules. A tool-free installation, the modular design as well as the integrated web server to accelerate the installation in control cabinet and machine. Status LEDs directly on the channel as well as on each u-remote module enable reliable diagnosis and quick service.
This text is machine translated.
