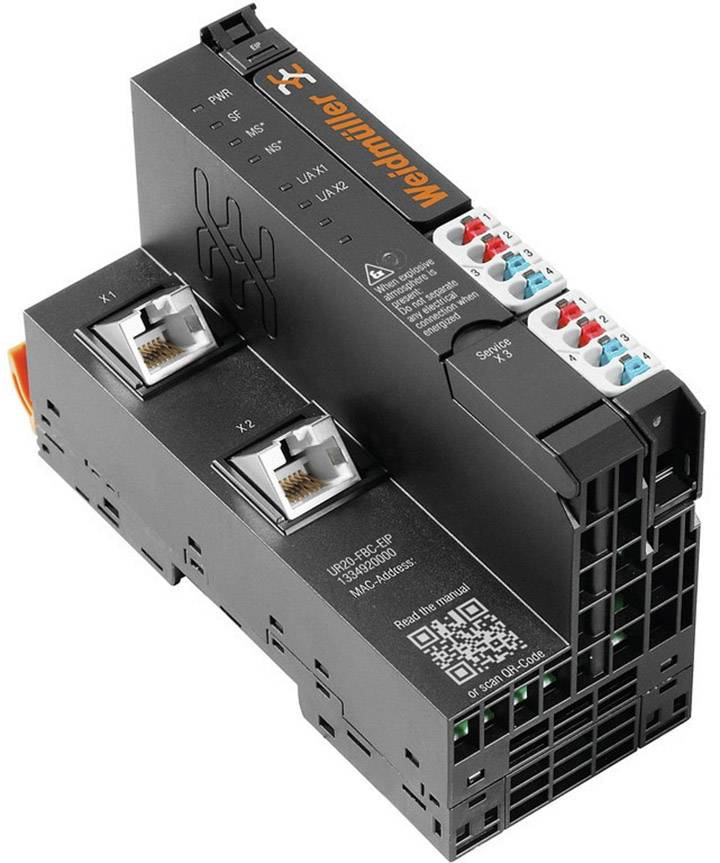

Weidmüller UR20-FBC-EIP 1334920000 PLC fieldbus connector 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Remote IO field bus coupler
- IP 20
- Ethernet
- EtherNet/IP
Technical specifications
- Maximum transfer rate of 48 Mbit/s
- 2x RJ45
- Product type
PLC fieldbus connector
- Operating voltage
24 V DC
- Height
120 mm
- Width
52 mm
IP20
- Dim
(W x H x D) 52 x 120 x 76 mm
- Manufacturer part #
1334920000
- Type
UR20-FBC-EIP
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Depth
76 mm
- Inputs / outputs
2x RJ45
52
120 mm
76 mm
FALSE
TRUE
Other
Other
IP20
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1402019 Weidmüller UR20-FBC-EIP 1334920000 PLC fieldbus connector 24 V DC
User & Safety Instructions
User & Safety Instructions 1402019 Weidmüller UR20-FBC-EIP 1334920000 PLC fieldbus connector 24 V DC
Description
More performance. Simplified. u-remote.
Weidmüller u-remote - the innovative remote I/O concept in IP20, which is exclusively to the benefits for the user-oriented: tailor-made plan, install faster, safer in operation, standstill. For a much better performance and higher productivity.
The reduction of control cabinets can be reached with u-remote by the slimmest modular design in the market and due to less demand for feed-in modules. A tool-free installation, the modular design in sandwich design as well as the integrated web server to accelerate the installation in control cabinet and machine. And Status LEDs directly on the channel as well as on each u-remote module enable reliable diagnosis and quick service.
These and many other clever ideas contribute to the increased availability of your machines and plants. And provide for consistently smooth use on the way. From the planning up to the operation.
