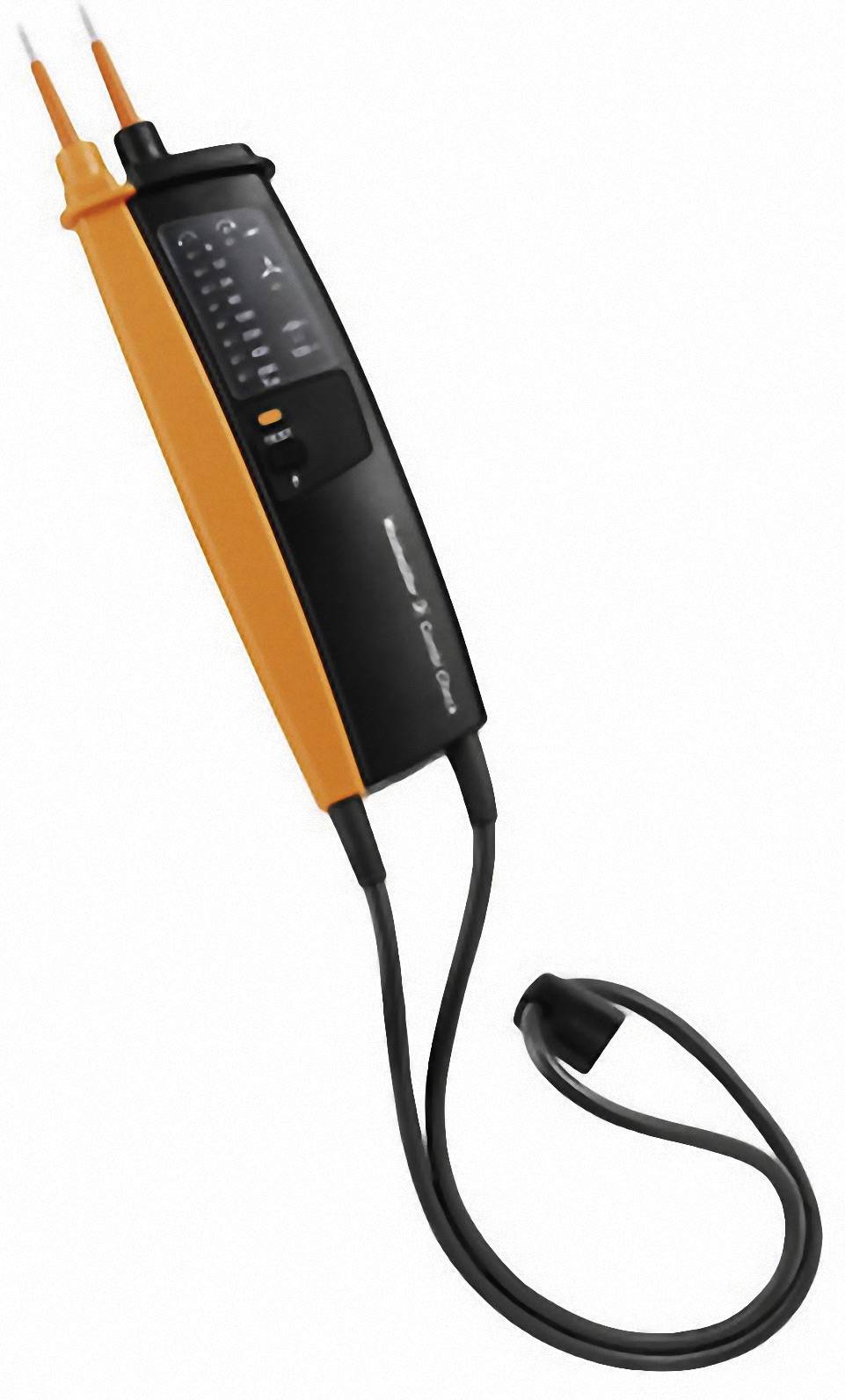

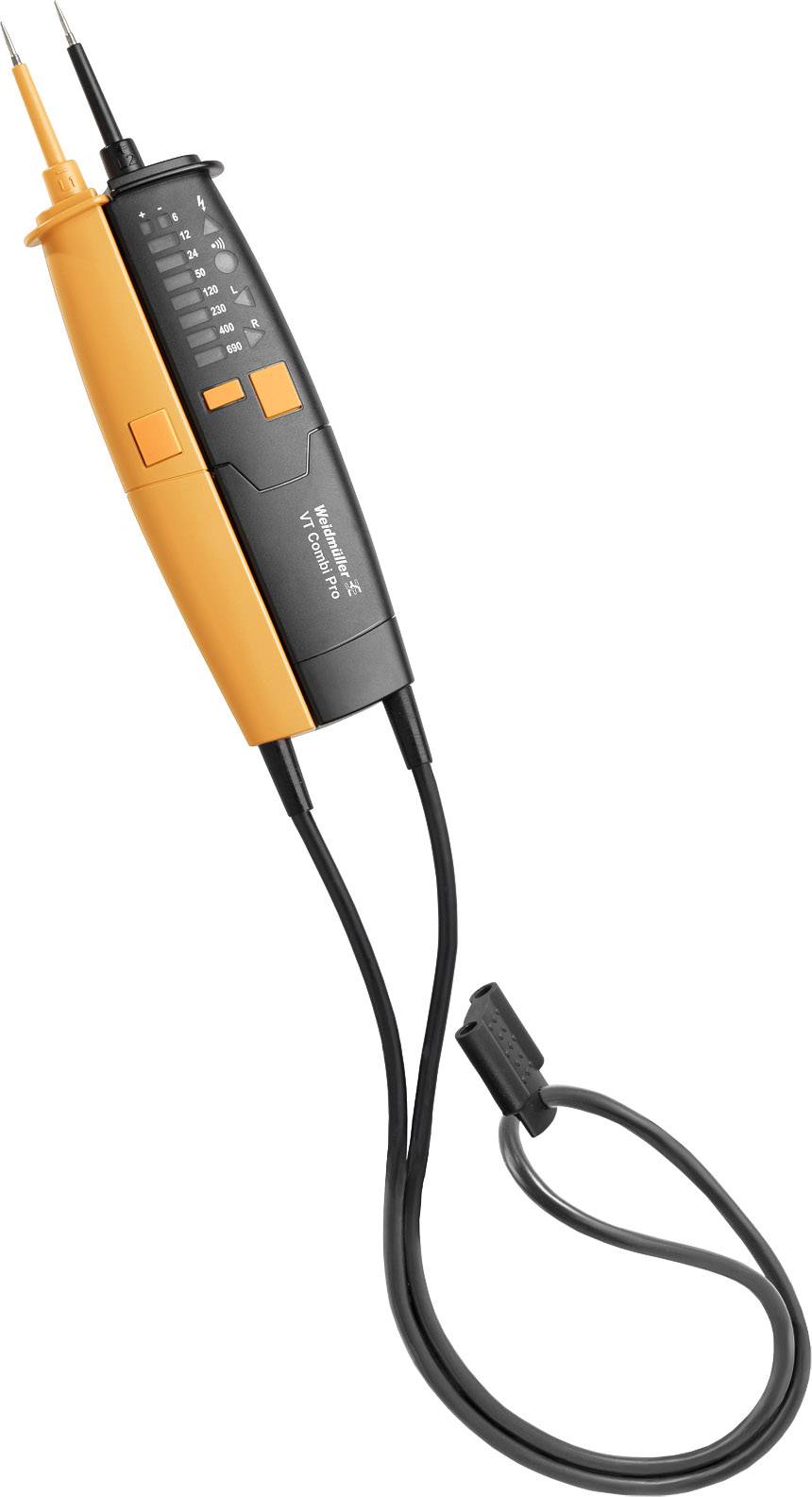

Weidmüller VT COMBI PRO Two-pole voltage tester CAT III 690 V, CAT IV 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Two-pole voltage tester VT COMBI PRO
- CAT IV 600V
- LED display
- Rotating magnetic field indicator
- Single-pole phase test
- 6 - 690 V AC/DC
Technical specifications
- Power supply: 2 micro batteries (AAA)
- Working temperature: -15 to +55°C
- Peak Voltage strength: 8 kV.
- Product type
Two-pole voltage tester
- Reading type
Rotating magnetic field
Phase
Continuity
- Display
LED
- V AC reading range
6 up to 690 V
- V DC reading range
6 up to 690 V
- Reading category
CAT III 690 V
CAT IV 600 V
IP65
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 33 x 67 x 264 mm
- Weight
290 g
- Max. frequency
400 Hz
- Min. frequency
16 Hz
- Frequency range
16 Hz - 400 Hz
- V AC reading range (max.)
690 V
- V AC reading range (min.)
6 V
- Voltage DC reading range (max.)
690 V
- Voltage reading range DC (min.)
6 V
- Width
67 mm
- Height
264 mm
- Length
33 mm
- Type
VT COMBI PRO
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 275813 Weidmüller VT COMBI PRO Two-pole voltage tester CAT III 690 V, CAT IV 600 V LED
User & Safety Instructions
User & Safety Instructions 275813 Weidmüller VT COMBI PRO Two-pole voltage tester CAT III 690 V, CAT IV 600 V LED
User & Safety Instructions 275813 Weidmüller VT COMBI PRO Two-pole voltage tester CAT III 690 V, CAT IV 600 V LED
Information
Information 275813 Weidmüller VT COMBI PRO Two-pole voltage tester CAT III 690 V, CAT IV 600 V LED
Description

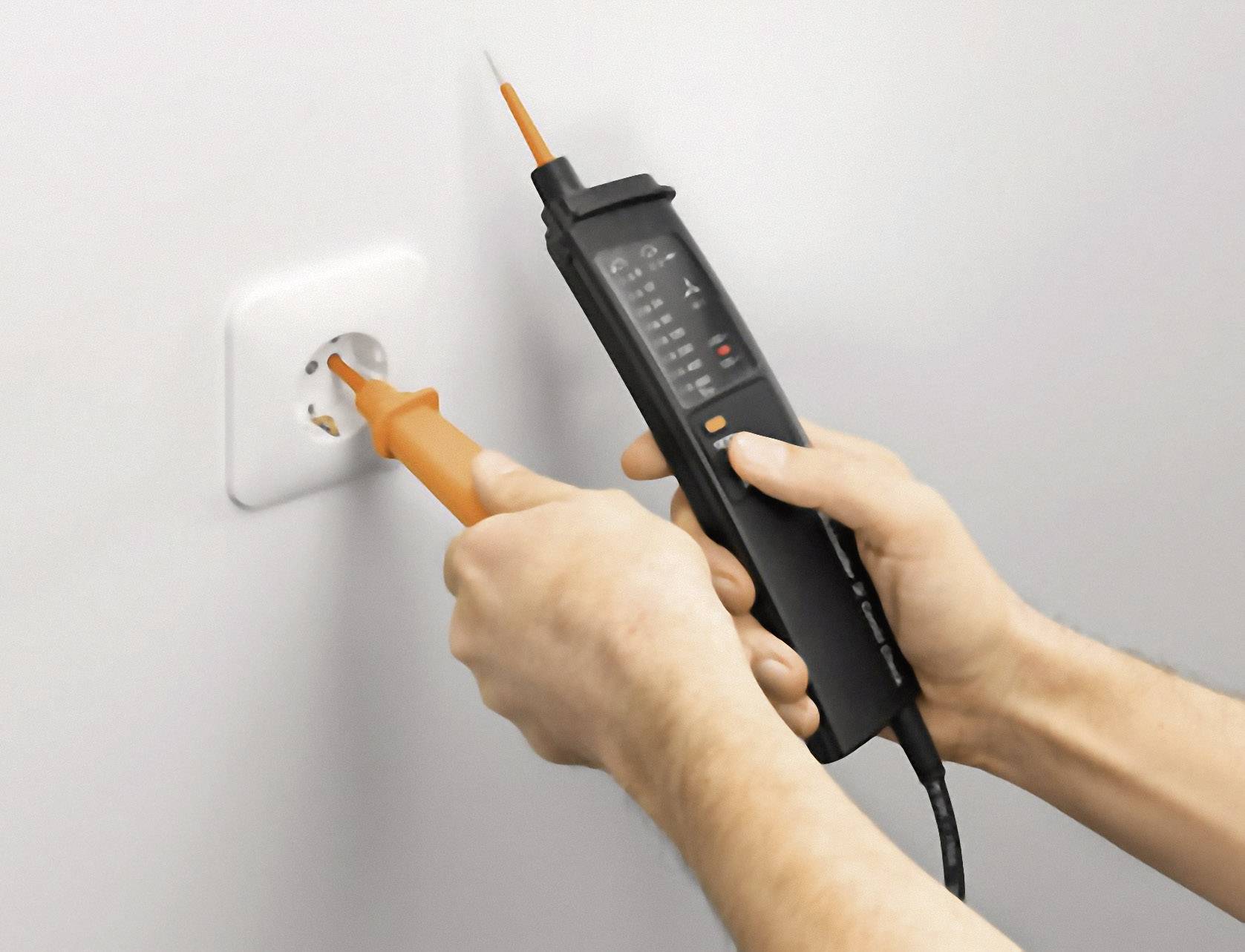

Two-pole voltage detector The main task of the voltage tester is the determining the voltage impotence. A 2-pole voltage tester is the only permissible test instrument to meet the requirements of the Labor Protection Act. According to VDE standard 0682 Part 401. High peak voltage stability. For every area of application the right tester.
This text is machine translated.
This text is machine translated.
Features
- Voltage display: 6, 12, 24, 50, 120, 230, 400, 690 V.
Scope of delivery
- Battery
- User manual.
