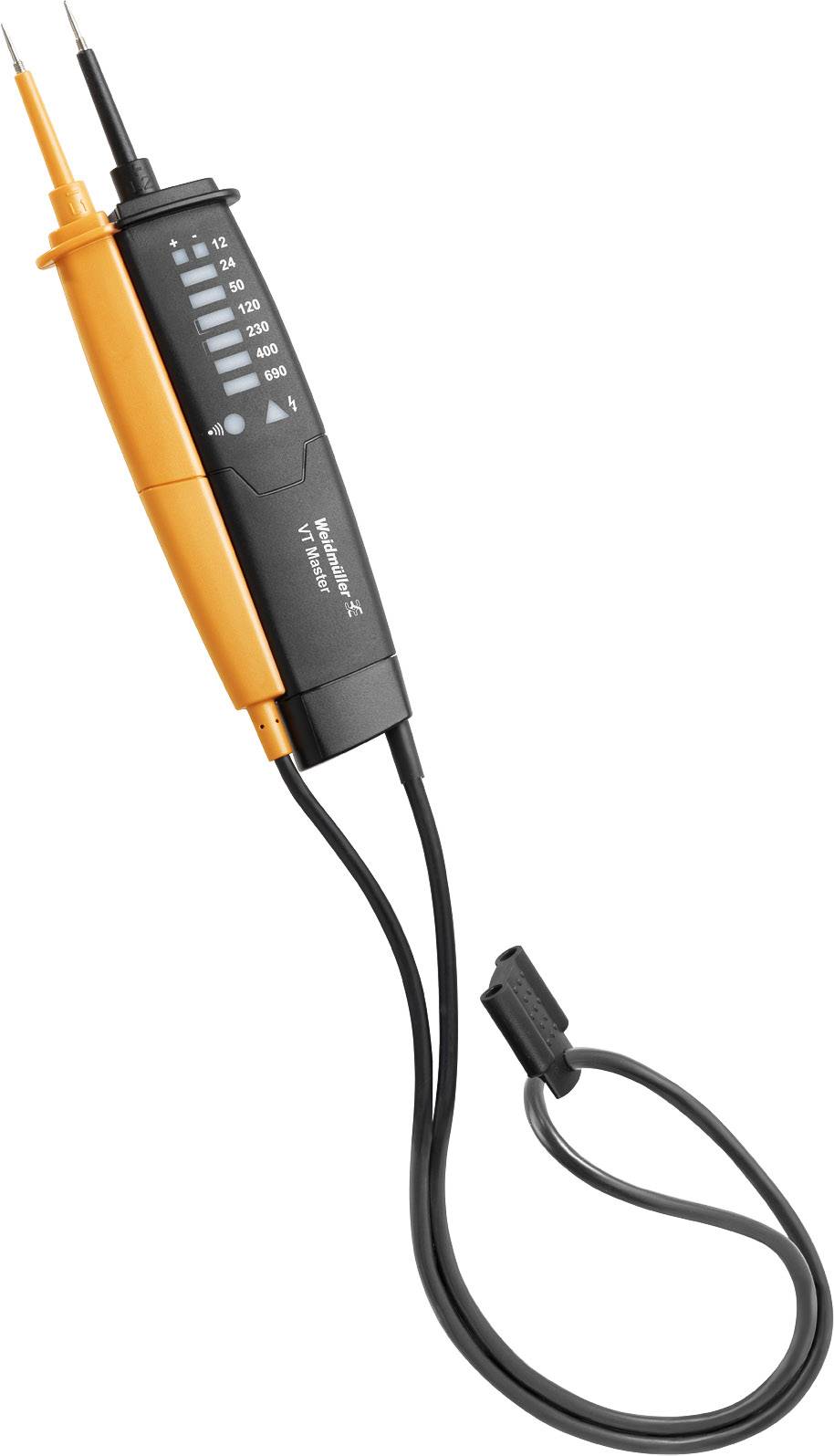

Weidmüller VT MASTER Two-pole voltage tester CAT III 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Highlights & Details
Two-pole voltage tester VT MASTER
- CAT IV 600V
- LED display
- 12 - 690 V AC/DC
- Insulation test: 6 kV
Technical specifications
- Working temperature: -15 to +55°C
- Power supply: 2 micro batteries (AAA).
- Product type
Two-pole voltage tester
- Reading type
Phase
Continuity
- Display
LED
- V AC reading range
12 up to 690 V
- V DC reading range
400 V (max)
- Reading category
CAT III 600 V
IP54
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 28 x 60 x 235 mm
- Weight
181 g
- Max. frequency
65 Hz
- Min. frequency
0 Hz
- Frequency range
0 Hz - 65 Hz
- V AC reading range (max.)
690 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
400 V
- Width
60 mm
- Height
235 mm
- Length
28 mm
- Type
VT MASTER
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 275815 Weidmüller VT MASTER Two-pole voltage tester CAT III 600 V LED
User & Safety Instructions
User & Safety Instructions 275815 Weidmüller VT MASTER Two-pole voltage tester CAT III 600 V LED
Information
Information 275815 Weidmüller VT MASTER Two-pole voltage tester CAT III 600 V LED
Description
Two-pole voltage detector The main task of the voltage tester is the determining the voltage impotence. A 2-pole voltage tester is the only permissible test instrument to meet the requirements of the Labor Protection Act. According to VDE standard. High peak voltage stability. For every area of application the right tester.
This text is machine translated.
This text is machine translated.
Features
- Voltage display: 12, 24, 50, 120, 230, 400, 690 V.
Scope of delivery
- Battery
- User manual.
