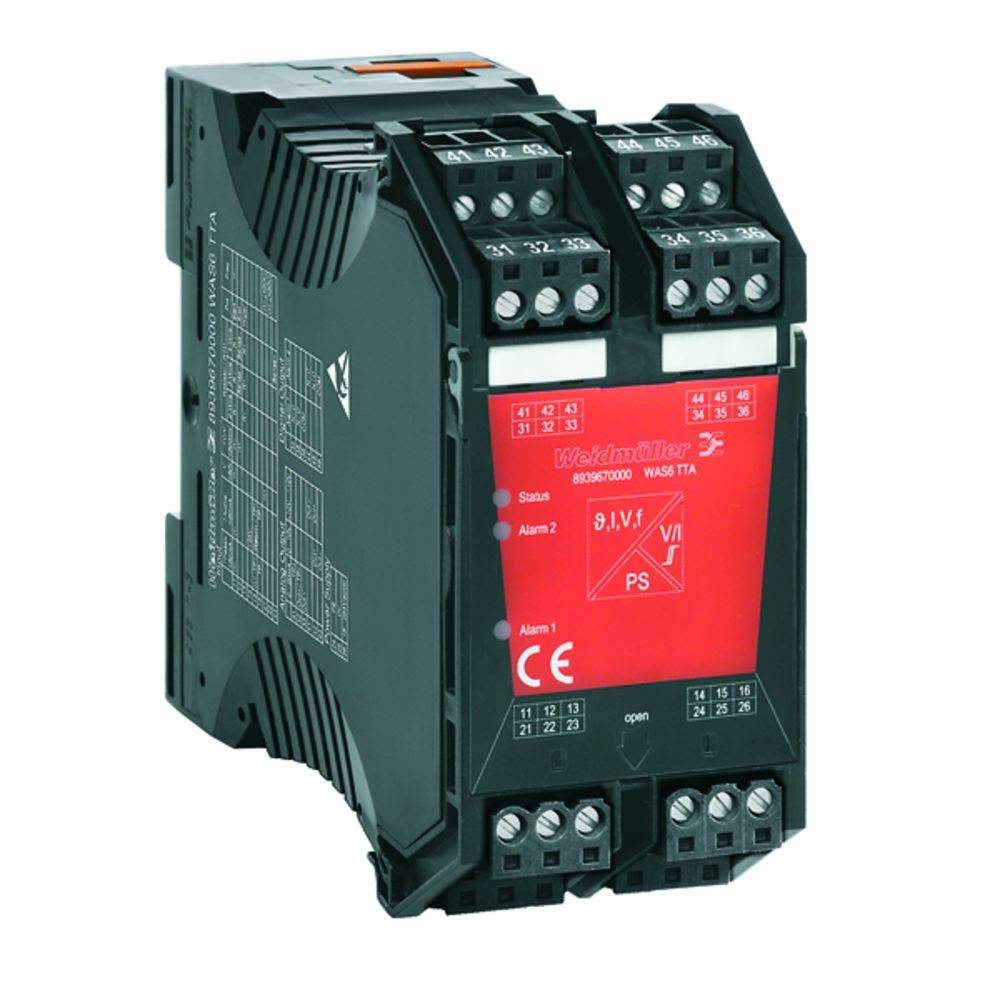

Weidmüller WAZ6 TTA EX 8964320000 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
50 mA
Input signal (voltage) (max.)
50 V
Type
WAZ6 TTA EX
Dim
(L x W) 100 mm x 45 mm
Datasheet (PDF)
Highlights & Details
Universal Signal Converter/limit switch
- WAZ 6 TTA EX
Technical specifications
- Depth: 112.4 mm
- Net weight 280 g
- Operating temperature: 40 °C - +70 °C
- Storage temperature: -40 °C to +85 °C.
- Number of inputs: 1
- Potentiometer 100 Ω-100 kΩ
- Sensor: Thermocouples: B, E, J, K, L, N, R, S, T (IEC 60584), PT100, Pt1000, (EN 60571) Ni100, Ni1000, (JIS1604), Cu10, Cu25, CU50, Cu100 (DIN 43760) 2-/3-/4-conductor
- Accuracy < : 0.1% span (DC, RTD), 0.2% span (or 1 °C) + CJ error
- Input frequency: Adjustable, 2 Hz - 100 kHz
- Output type: 2 x 1 changeover contact (hard gold plated), process interrupts (4-fold) with hysteresis, with alarm delay (configurable) 0…180 s.
- Switching voltage: 250 V/AC
- Power consumption: 3.5 W
- Jump response time: 50 ms - 1 s (RTD, mV inputs), 110 ms - 1 s (V, mA inputs)
- Surge voltage 6 kV
- Load resistance Voltage: > 10 kΩ at 0 V-10 V / > 20 kΩ at -10...+10 V.
- Sensor supply: 24 V/DC / 22 mA
- Wire stripping length rated connection 7 mm
- Clearance and creepage distance > 5.5 mm (1 mm input/output)
- Type
WAZ6 TTA EX
- Product type
Signal converter
- Input signal (current) (max.)
50 mA
- Input signal (voltage) (max.)
50 V
- Dim
(L x W) 100 mm x 45 mm
- Connection
Pull spring
- Output (current)
0 mA-20 mA
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Load
700 Ω
- Input signal (voltage)
50 V/DC
- Input signal (current)
50 mA
- Content
1 pc(s)
- Configuration
Software
- Width
45 mm
- Length
100 mm
- RoHS-compliant
Yes
- Type
PT100
PT1000
- Supply voltage (num.)
240 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Depth
112.4 mm
- Type
WAZ 6 TTA EX
- Weight
288 g
Documents & Downloads
Datasheet
Datasheet 258843 Weidmüller WAZ6 TTA EX 8964320000 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258843 Weidmüller WAZ6 TTA EX 8964320000 Signal converter 1 pc(s)
Description
Universal Signal Converter/limit switches. Wave Series, Universal Signal Converter/limit switches. What WAZ 6 TTA is a universal PC-configurable signal converter and limit switches. It is separator, generator, Linea Risi more and limit switch in a module.. The combination of best features and exceptional configuration option makes the TTA unique. The TTA works in a wide range of ambient temperature and voltage range precise and stable with all the common sensor types. Universal input signals: temperature signals, such as resistance thermometers, thermocouples and potentiometer, frequency generator and DC voltage and current signals, current loop fed or passive input, wide-range power supply 18…264 V AC/DC. Custom linearization. Inputs and outputs are PC-configurable. Analogue and relay output combined. Ambient temperature range -40 °C - 70 °C. The connection to the PC is made via the CBX200 USB interface. The WAZ 6 TTA is optional also with what/ATEX Zone 2 and UL C1D 2 certification.
