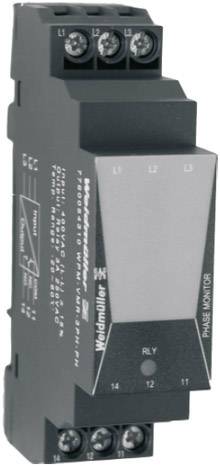

Weidmüller WPM-VMR-3PH-PH 7760054310 ATA 1 pc(s)
EAN:
Part number:
Item no:
Product type
ATA
Input signal (voltage) (max.)
400 V
Type
WPM-VMR-3PH-PH
Dim
(L x W) 90 mm x 22.5 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Depth: 58 mm
- Net weight: 59.64 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -40 °C to +85 °C.
- Number of inputs: 1 x 3-phase (R, S, T, N)
- Galvanic isolation: Between input/output
- Input frequency 40 Hz - 60 Hz
- Output type: Relay, 1 changeover contact
- Switching voltage: 250 V/AC
- Jump response time < : 200 ms (10% - 90%)
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 30
- Conductor cross-section AWG, max. AWG 14
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
WPM-VMR-3PH-PH
- Product type
ATA
- Input signal (voltage) (max.)
400 V
- Dim
(L x W) 90 mm x 22.5 mm
- Connection
Screws
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Input signal (voltage)
400 V/AC
- Content
1 pc(s)
- Width
22.5 mm
- Length
90 mm
- Cross section (inflexible) (max.)
2 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1889265 Weidmüller WPM-VMR-3PH-PH 7760054310 ATA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1889265 Weidmüller WPM-VMR-3PH-PH 7760054310 ATA 1 pc(s)
Description
The analogue converter of the EPAK-series are characterised by their compact form. On the basis of its wide function spectrum is suitable
This analogue converter family for applications in which no international
Approvals are necessary.
Properties:
• Safe cutting, convert and monitor your analogue signals
• Configuration of the input and output parameters directly on the device via dip switches
• No international approvals
• Robust against interference
This text is machine translated.
This analogue converter family for applications in which no international
Approvals are necessary.
Properties:
• Safe cutting, convert and monitor your analogue signals
• Configuration of the input and output parameters directly on the device via dip switches
• No international approvals
• Robust against interference
This text is machine translated.
