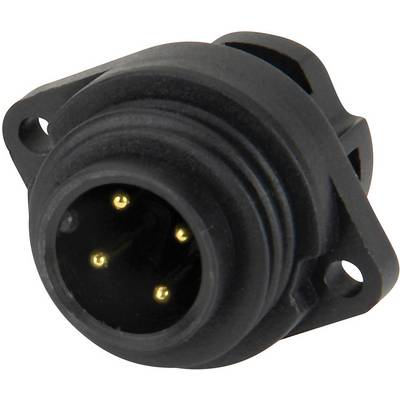

Weipu 814059 Bullet connector Plug, vertical mount Total number of pins: 3 + PE Series (round connectors): WA 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, vertical mount
Total no. of pins
3 + PE
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
IP67 device plug series WA 22
Our service for you
Technical specifications
- Type
814059
- Product type
Bullet connector
- Connector type
Plug, vertical mount
- Total no. of pins
3 + PE
- Connection
Screws
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+105 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Leading contact (PE)
Yes
- Nominal voltage
400 V
- Contact material
Brass gold plated
- Case material
Polyamide 6.6
14
- Connection angle
180°
- Mounting hole diameter
21.5 mm
- Manufacturer part #
814059
- Number of pins
3
- max. cross section
2.5 mm²
- Cross-section range
2.5 mm² (max)
- RoHS-compliant
Yes
IP67 (when connected)
- Series
WA
Documents & Downloads
Datasheet
Datasheet 1289671 Weipu 814059 Bullet connector Plug, vertical mount Total number of pins: 3 + PE Series (round connectors): WA 1 pc(s)
Description
Round connector series WA22 with screw locking correspond with the make and concept of the high requirements for the use in the industrial technology. A compact and secure connection when a degree of sealing against the environment is required. The main application fields for series WA22 can be found in the plant construction and mechanical engineering, measurement and control technology, drive technology as well as the medical technology.
