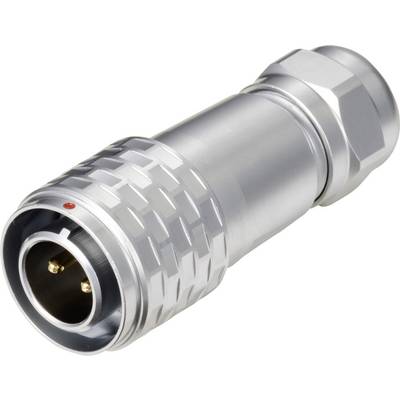

Weipu SF1210/P2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SF12 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
2
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
201 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€
Highlights & Details
Push-pull circular connector IP67
- IP67
Technical specifications
- Type
SF1210/P2 I
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
2
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+95 °C
- Nominal current
7 A
- Min. temperature
-30 °C
- Nominal current - rounded value
7 A
- Seal
Push-Pull
- Nominal voltage
250 V
- Contact material
Brass gold plated
- Cable Ø (max.)
6.5 mm
- Cable Ø up to
4 mm
- Case material
Brass, chrome plated
14
- Connection angle
180°
- Manufacturer part #
SF1210/P2 I
- Cable Ø range
4 - 6.5 mm
- Number of pins
2
- max. cross section
2 mm²
- Cross-section range
2 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
SF12
Documents & Downloads
Datasheet
Datasheet 715739 Weipu SF1210/P2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SF12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 715739 Weipu SF1210/P2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SF12 1 pc(s)
Description
The Circular Connectors of the series SF12 with push-pull locking mechanism provides for a compact and secure connection. Quick and easy plug and lock and cutting. Blind and easy connect/disconnect at places difficult to access by a very low space requirement. Application in measurement and protocol devices, in the robot and industrial technology.
This text is machine translated.
