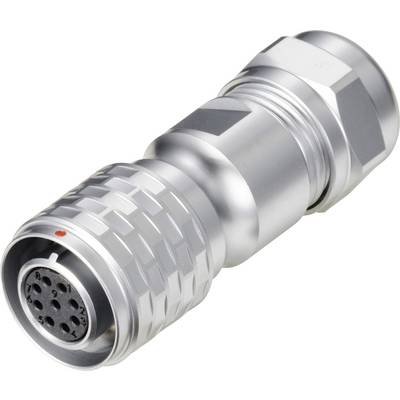

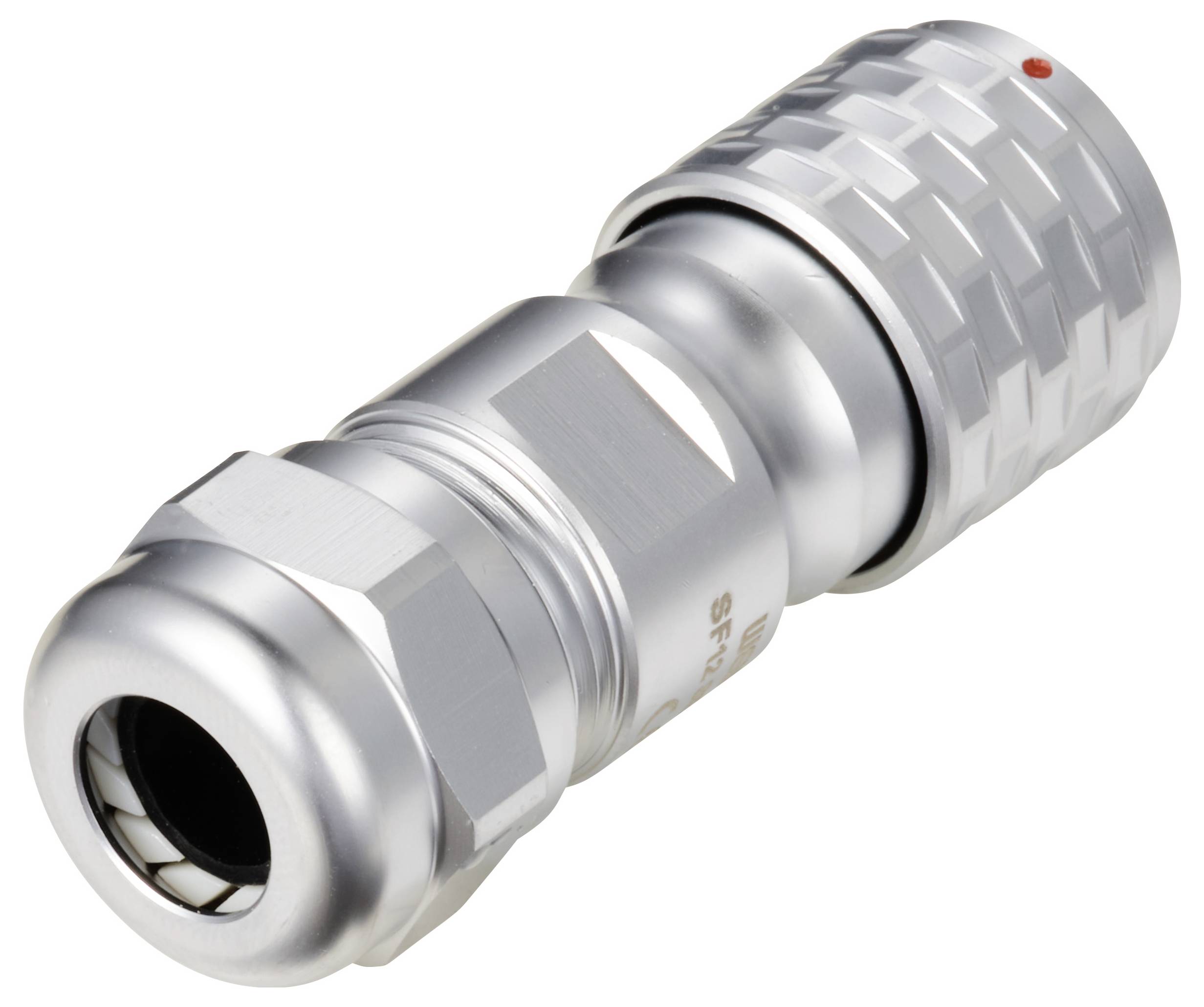

Weipu SF1210/S9 II Bullet connector Connector, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€
Highlights & Details
Push-pull circular connector IP67
- IP67
Technical specifications
- Connector type
Connector, straight

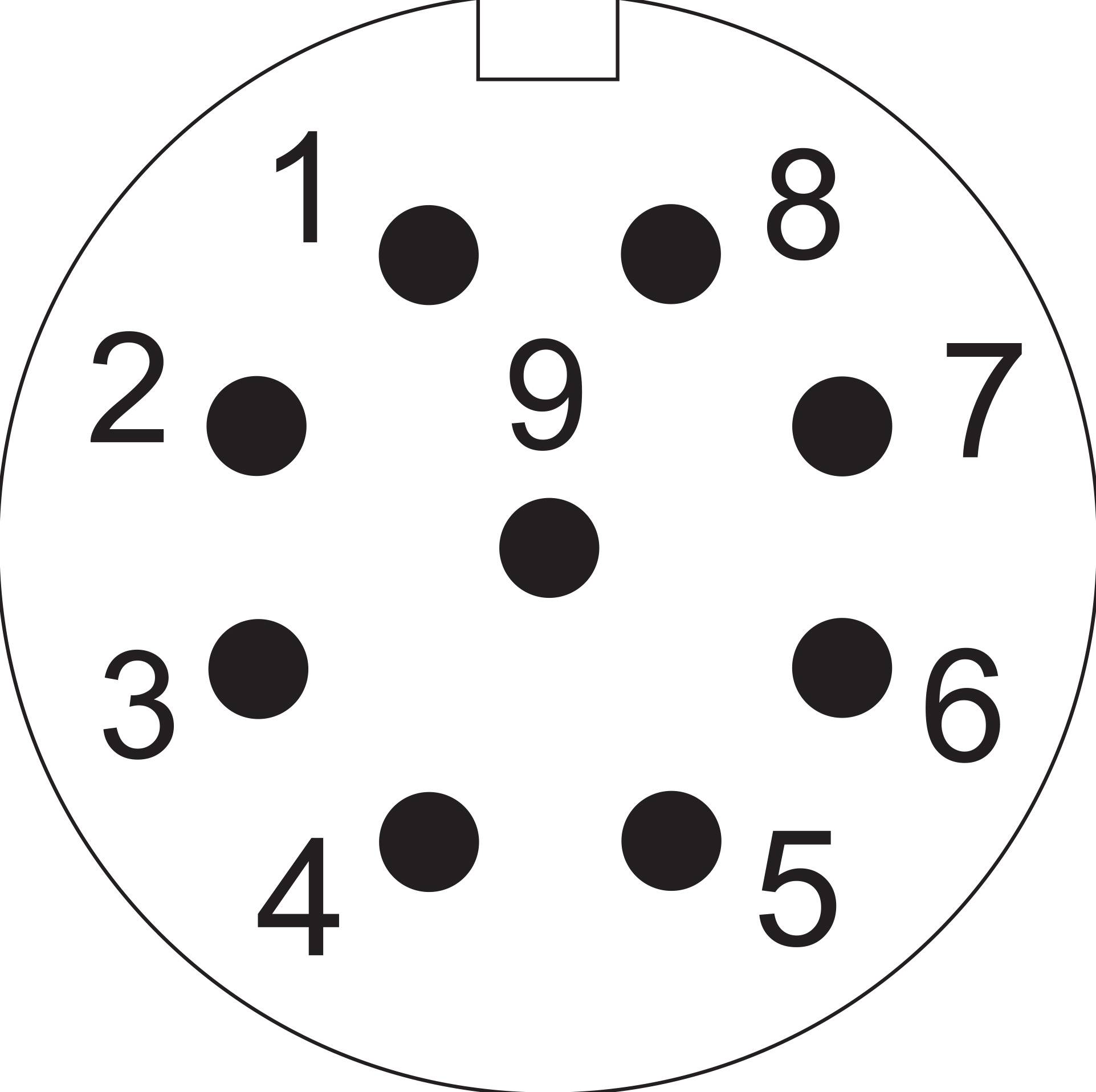

- Total no. of pins
9
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
1 A
- Min. temperature
-40 °C
- Nominal current - rounded value
1 A
- Seal
Push-Pull
- Nominal voltage
125 V
- Contact material
Brass gold plated
- Cable Ø (max.)
8 mm
- Cable Ø up to
5 mm
- Case material
Brass, chrome plated
- Cable Ø range
5 - 8 mm
- Cross-section range
0.758 mm² (max)
IP67
- Series
SF12
- Manufacturer part #
SF1210/S9 II
- Type
SF1210/S9 II
- max. cross section
0.758 mm²
- Number of pins
9
- Connection angle
180°
18
- RoHS-compliant
Yes
- Product type
Bullet connector
Documents & Downloads
Datasheet
Datasheet 715949 Weipu SF1210/S9 II Bullet connector Connector, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 715949 Weipu SF1210/S9 II Bullet connector Connector, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)
Description
The Circular Connectors of the series SF12 with push-pull locking mechanism provides for a compact and secure connection. Quick and easy plug and lock and cutting. Blind and easy connect/disconnect at places difficult to access by a very low space requirement. Application in measurement and protocol devices, in the robot and industrial technology.
