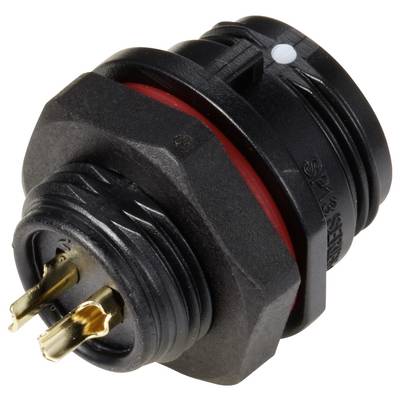

Weipu SP1312 / S 2 Bullet connector Socket, built-in Total number of pins: 2 Series (round connectors): SP13 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, built-in
Total no. of pins
2
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
1123 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€
Technical specifications
- Type
SP1312 / S 2
- Product type
Bullet connector
- Connector type
Socket, built-in
- Total no. of pins
2
- Connection
Soldering
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+125 °C
- Nominal current
13 A
- Min. temperature
-55 °C
- Nominal current - rounded value
13 A
- Seal
Screw-type locking
- Nominal voltage
600 V
- Contact material
Gold plated
- Case material
PPS
14
- Connection angle
180°
- Mounting hole diameter
13 mm
- Manufacturer part #
SP1312 / S 2
- Number of pins
2
- max. cross section
2 mm²
- Cross-section range
2 mm² (max)
- RoHS-compliant
Yes
IP68
- Series
SP13
Documents & Downloads
Datasheet
Datasheet 736273 Weipu SP1312 / S 2 Bullet connector Socket, built-in Total number of pins: 2 Series (round connectors): SP13 1 pc(s)
User & Safety Instructions
User & Safety Instructions 736273 Weipu SP1312 / S 2 Bullet connector Socket, built-in Total number of pins: 2 Series (round connectors): SP13 1 pc(s)
Description
The round plug-in connector series SP13 with screw locking provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With mounting nut
