Buy Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)

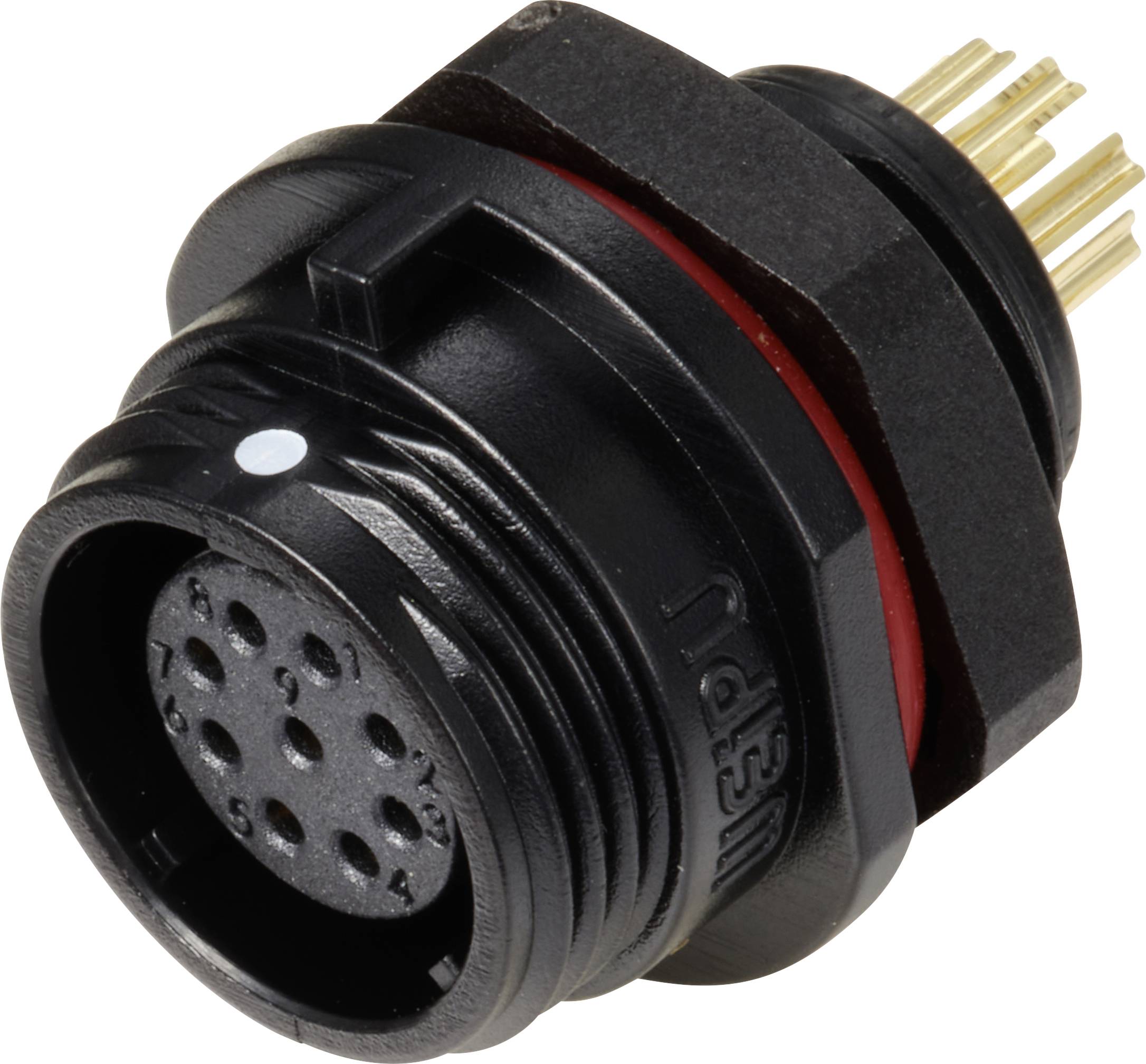

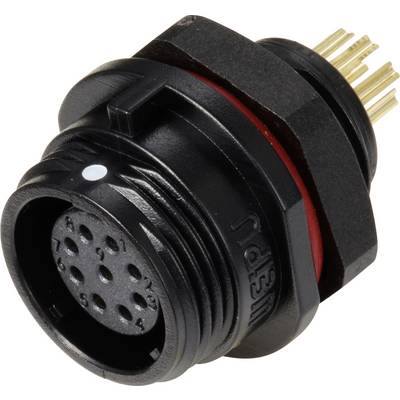

Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)-0

'Black, round plug with gold-coloured contacts and multiple connection holes, shown from the side.'

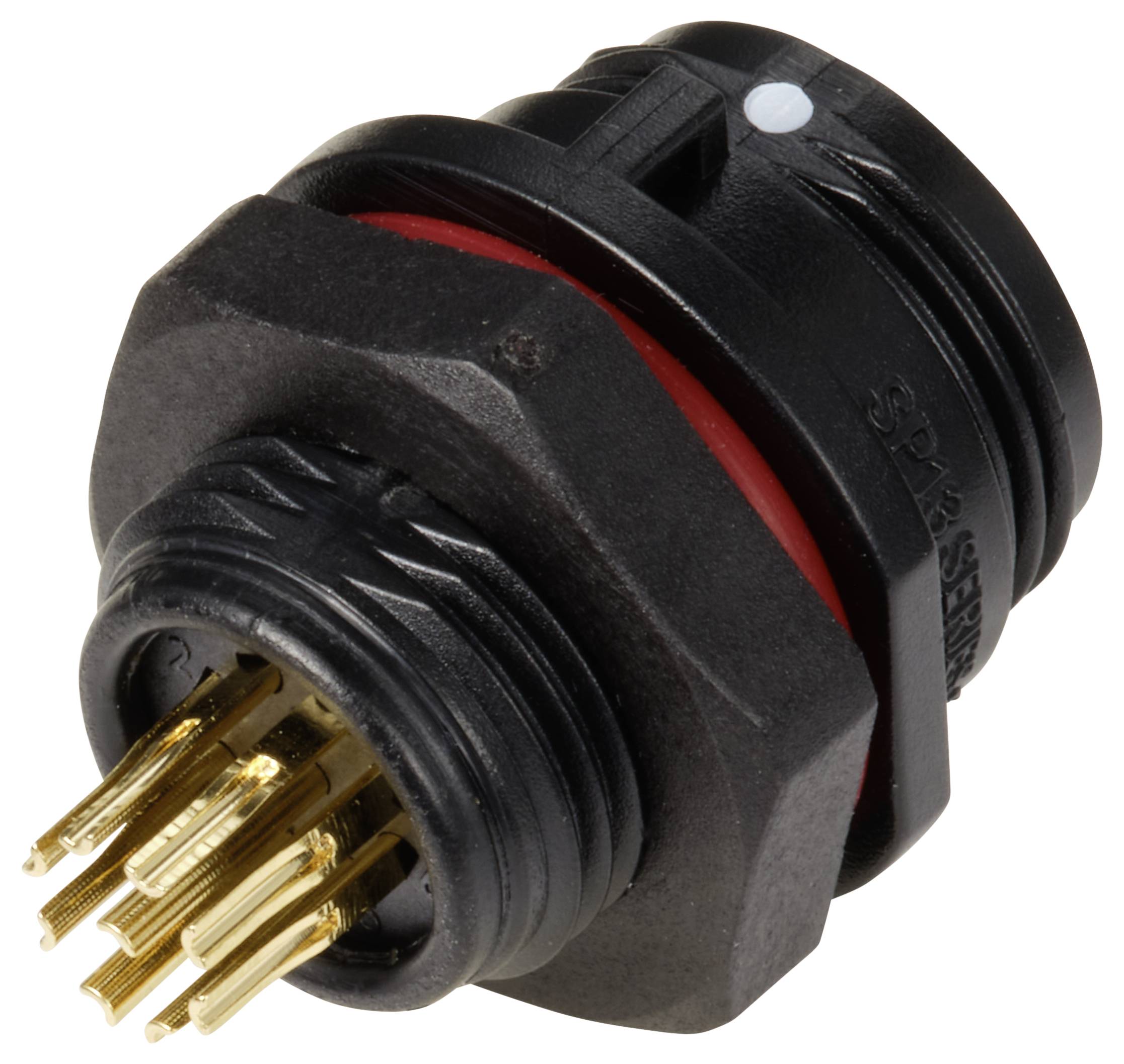

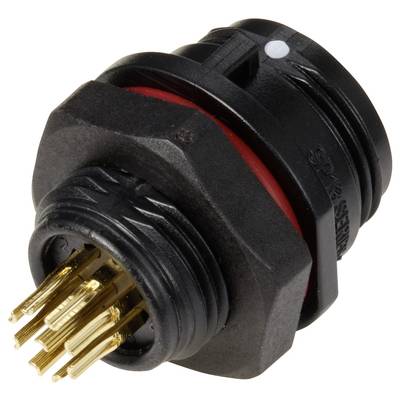

Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)-2

Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)-3

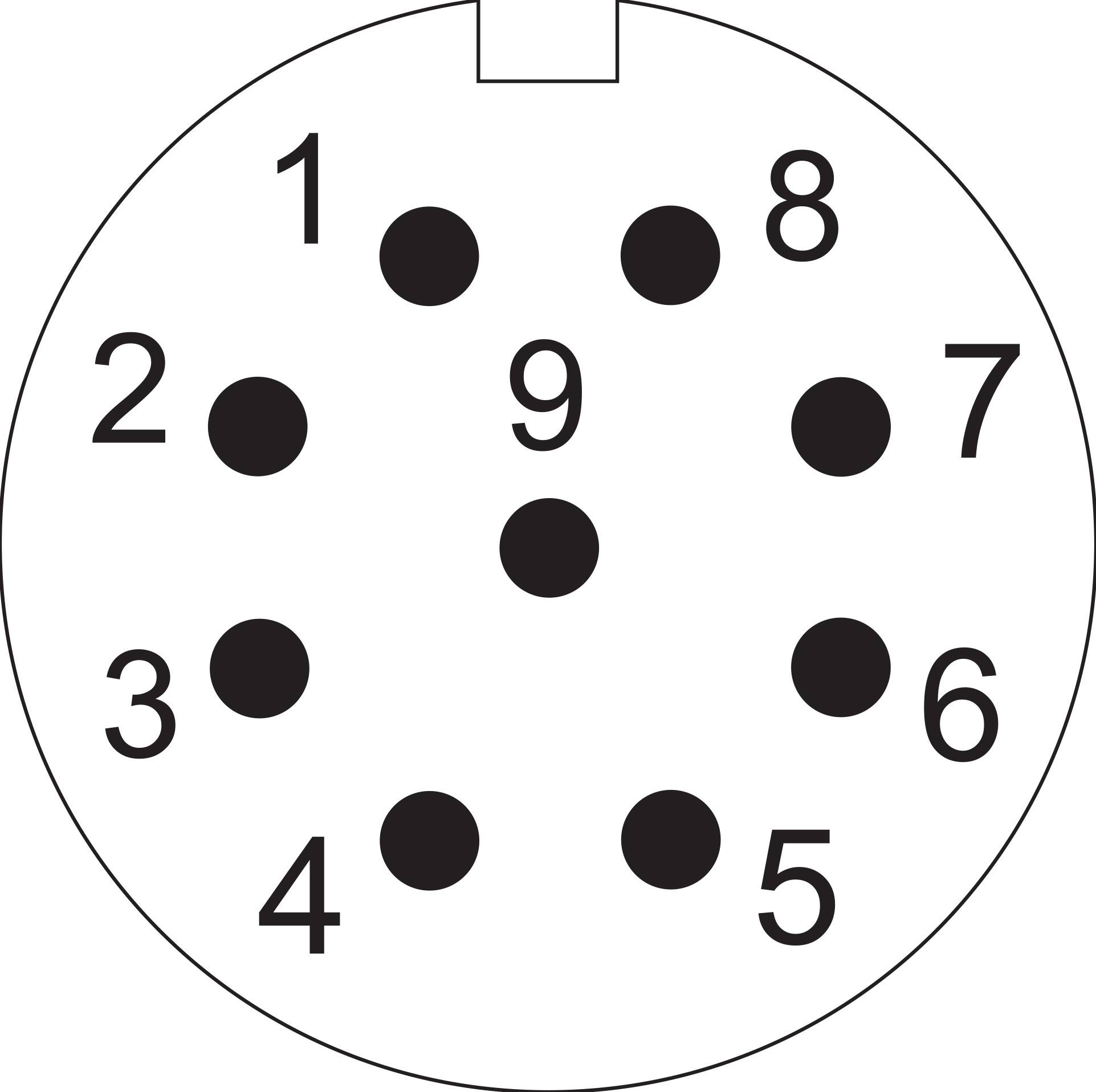

A circular pin diagram with nine numbered pins from 1 to 9, numbered clockwise.

1/5

Product type

Bullet connector

Connector type

Socket, built-in

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Wed, 29 Jul

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

IP68 plug connector series SP13

Our service for you

Technical specifications

Type: SP1312 / S 9

Product type: Bullet connector

Connector type: Socket, built-in

Total no. of pins: 9

Connection: Soldering

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +125 °C

Nominal current: 3 A

Min. temperature: -55 °C

Nominal current - rounded value: 3 A

Seal: Screw-type locking

Nominal voltage: 600 V

Contact material: Gold plated

Case material: PPS

: 18

Connection angle: 180°

Mounting hole diameter: 13 mm

Manufacturer part #: SP1312 / S 9

Number of pins: 9

max. cross section: 0.785 mm²

Cross-section range: 0.785 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SP13

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connector type

Factory colour

Total no. of pins

Nominal voltage

Weipu SP1310 / P 2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SP13 1 pc(s)

Item no:734415

SP1310 / P 2 I

10 A

Plug, straight

BlackBlue

277 V

Weipu SP1310 / P 3 I Bullet connector Plug, straight Total number of pins: 3 Series (round connectors): SP13 1 pc(s)

Item no:734468

SP1310 / P 3 I

13 A

Plug, straight

BlackBlue

250 V

Weipu SP1310 / P 4 I Bullet connector Plug, straight Total number of pins: 4 Series (round connectors): SP13 1 pc(s)

Item no:734518

SP1310 / P 4 I

32 A

Plug, straight

BlackBlue

600 V

Weipu SP1310 / P 5 I Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP13 1 pc(s)

Item no:734570

SP1310 / P 5 I

32 A

Plug, straight

BlackBlue

600 V

Weipu SP1310 / P 5 II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP13 1 pc(s)

Item no:734612

SP1310 / P 5 II

32 A

Plug, straight

BlackBlue

600 V

Weipu SP1310 / P 6 II Bullet connector Plug, straight Total number of pins: 6 Series (round connectors): SP13 1 pc(s)

Item no:734661

SP1310 / P 6 II

6 A

Plug, straight

BlackBlue

125 V

Weipu SP1310 / P 7 II Bullet connector Plug, straight Total number of pins: 7 Series (round connectors): SP13 1 pc(s)

Item no:734706

SP1310 / P 7 II

10 A

Plug, straight

BlackBlue

277 V

Weipu SP1310 / P 9 II Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SP13 1 pc(s)

Item no:734746

SP1310 / P 9 II

10 A

Plug, straight

BlackBlue

277 V

Weipu SP1310 /S 2 I Bullet connector Socket, straight Total number of pins: 2 Series (round connectors): SP13 1 pc(s)

Item no:734788

SP1310 /S 2 I

13 A

Socket, straight

BlackBlue

250 V AC

Weipu SP1310 / S 3 I Bullet connector Socket, straight Total number of pins: 3 Series (round connectors): SP13 1 pc(s)

Item no:734827

SP1310 / S 3 I

6 A

Socket, straight

BlackBlue

277 V

Documents & Downloads

Datasheet

Datasheet 736435 Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)

User & Safety Instructions

User & Safety Instructions 736435 Weipu SP1312 / S 9 Bullet connector Socket, built-in Total number of pins: 9 Series (round connectors): SP13 1 pc(s)

Description

The round plug-in connector series SP13 with screw locking provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.

This text is machine translated.

Scope of delivery

With mounting nut
This text is machine translated.
