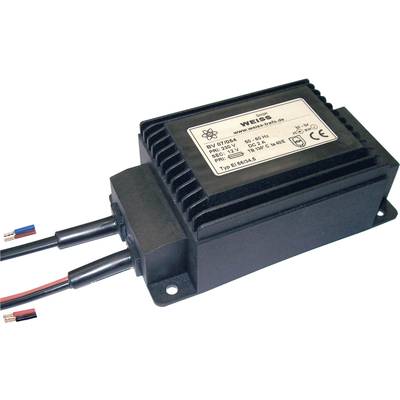

Weiss Elektrotechnik 07/054 Compact PSU transformer 1 x 230 V 1 x 24 V DC 24 W 1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
48 Piece(s)
Sales and shipping:
Number
Total (€ 39.49 / piece)
€
Highlights & Details
Compact power supply with rectifier and ripple suppression
- 1 x 230 V
- 1 x 24 V DC
- 1 A
- 24 W
Technical specifications
- Wire length: 200 mm
- By rail snapper (TS 35)
- Product type
Compact PSU transformer
- Output voltage
24 V DC
- Output current
1 A
- No. of outputs
1 x
- No. of inputs
1 x
24 W
- Input voltage
230 V
- Connection
Open end cable
- Width
72 mm
- Height
65 mm
- Length
165 mm
- Dim
(L x W x H) 165 x 72 x 65 mm
- Output voltage (number x voltage)
1 x 24 V DC
- Input voltage (number x voltage)
1 x 230 V
- Frequency
50 - 60 Hz
- Weight
1120 g
- Content
1 pc(s)
- Type
EI 66
- Output voltage
24 V DC
- Type
EI 66
Documents & Downloads
Datasheet
Datasheet 505221 Weiss Elektrotechnik 07/054 Compact PSU transformer 1 x 230 V 1 x 24 V DC 24 W 1 A
Description
Features
- Connectivity via wires with ferrules, strand length 200 mm, primary (input) in blue / brown, Secondary (DC output) red / black Location by rail snapper (TS35).
