Weiss Elektrotechnik 83/288 PCB mount transformer 2 x 115 V 2 x 21 V AC 24 VA 572 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details
UI 39 Flat transformer 24 VA
- 2 x 115 V
- 2 x 21 V AC
- 572 mA
- 24 VA
Technical specifications
- Pin arrangement primary: PIN 1-4 / 9-6
- Pin arrangement secondary: PIN 12-14 / 19-17
- Output voltage
21 V AC
- Output voltage (number x voltage)
2 x 21 V AC
- Output current
572 mA
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
24 VA

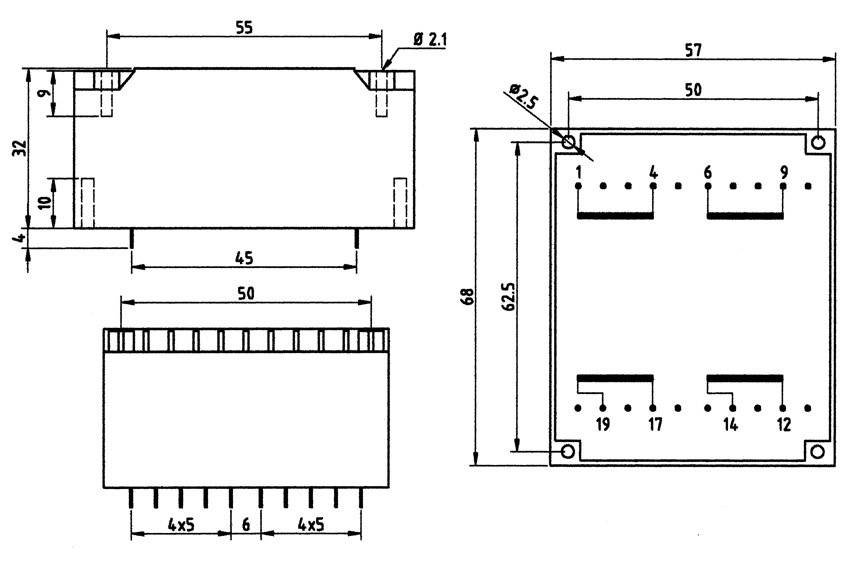

- Width
57 mm
- Height
32 mm
- Length
68 mm
- Type
83/288
- Content
1 pc(s)
- Dim
(L x W x H) 68 x 57 x 32 mm
- Connection
Soldering
24 VA
- Output voltage
2 x 21 V
- Type
UL 506
- Frequency
50 - 60 Hz
- RoHS-compliant
- Weight
435 g
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 506086 Weiss Elektrotechnik 83/288 PCB mount transformer 2 x 115 V 2 x 21 V AC 24 VA 572 mA
