Weiss Elektrotechnik 83/292 PCB mount transformer 2 x 115 V 2 x 6 V AC 30 VA 2500 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Highlights & Details
UI 39 30 VA Flat Transformers
- 2 x 115 V
- 2 x 6 V AC
- 2500 mA
- 30 VA
Technical specifications

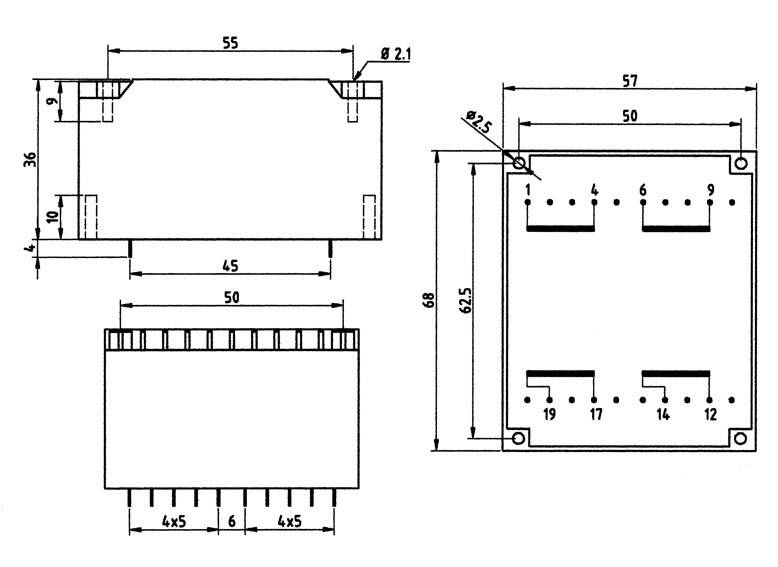

- Primary pin allocation: PIN 1-4 / 9-6
- Secondary pin allocation: PIN 12-14 / 19-17
- Output voltage
6 V AC
- Output voltage (number x voltage)
2 x 6 V AC
- Output current
2500 mA
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
30 VA
- Width
57 mm
- Height
36 mm
- Length
68 mm
- Type
83/292
- Content
1 pc(s)
- Dim
(L x W x H) 68 x 57 x 36 mm
- Connection
Soldering
30 VA
- Output voltage
2 x 6 V
- Type
UL 506
- Frequency
50 - 60 Hz
- Weight
520 g
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 506100 Weiss Elektrotechnik 83/292 PCB mount transformer 2 x 115 V 2 x 6 V AC 30 VA 2500 mA
User & Safety Instructions
User & Safety Instructions 506100 Weiss Elektrotechnik 83/292 PCB mount transformer 2 x 115 V 2 x 6 V AC 30 VA 2500 mA
