Weiss Elektrotechnik 85/385 PCB mount transformer 1 x 230 V 1 x 24 V AC 16 VA 667 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Weiss Elektrotechnik 85/385 PCB mount transformer 1 x 230 V 1 x 24 V AC 16 VA 667 mA
- 1 x 230 V
- 1 x 24 V AC
- 667 mA
- 16 VA
Technical specifications

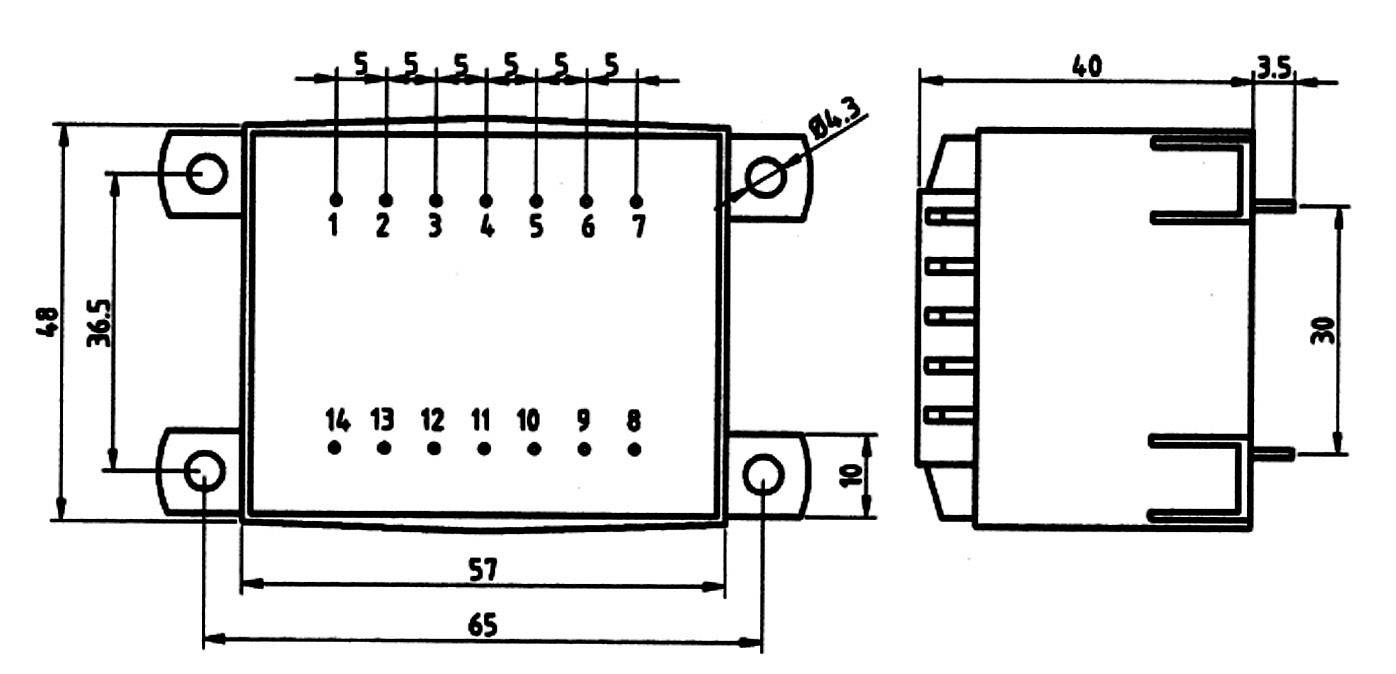

- Primary pin assignment: PIN 1 - 7, Secondary pin assignment 1: PIN 9 - 13
- Design UL 506
- Output voltage
24 V AC
- Output voltage (number x voltage)
1 x 24 V AC
- Output current
667 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
16 VA
- Width
48 mm
- Height
40.5 mm
- Length
57 mm
- Type
85/385
- Content
1 pc(s)
- Dim
(L x W x H) 57 x 48 x 40.5 mm
- Connection
Soldering
16 VA
- Output voltage
24 V
- Frequency
50 - 60 Hz
- Weight
410 g
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 504492 Weiss Elektrotechnik 85/385 PCB mount transformer 1 x 230 V 1 x 24 V AC 16 VA 667 mA
User & Safety Instructions
User & Safety Instructions 504492 Weiss Elektrotechnik 85/385 PCB mount transformer 1 x 230 V 1 x 24 V AC 16 VA 667 mA
