Weiss Elektrotechnik 85/402 PCB mount transformer 1 x 230 V 1 x 12 V AC 25 VA 2083 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 1 Piece(s) available
Highlights & Details
EI 60-Print transformer 25 VA
- 1 x 230 V
- 1 x 12 V AC
- 2083 mA
- 25 VA
Technical specifications
- Pin assignment primary: PIN 1 - 7, pin assigment secondary 1: PIN 9 - 13
- Design: UL 506
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
1 x 12 V AC
- Output current
2083 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
25 VA

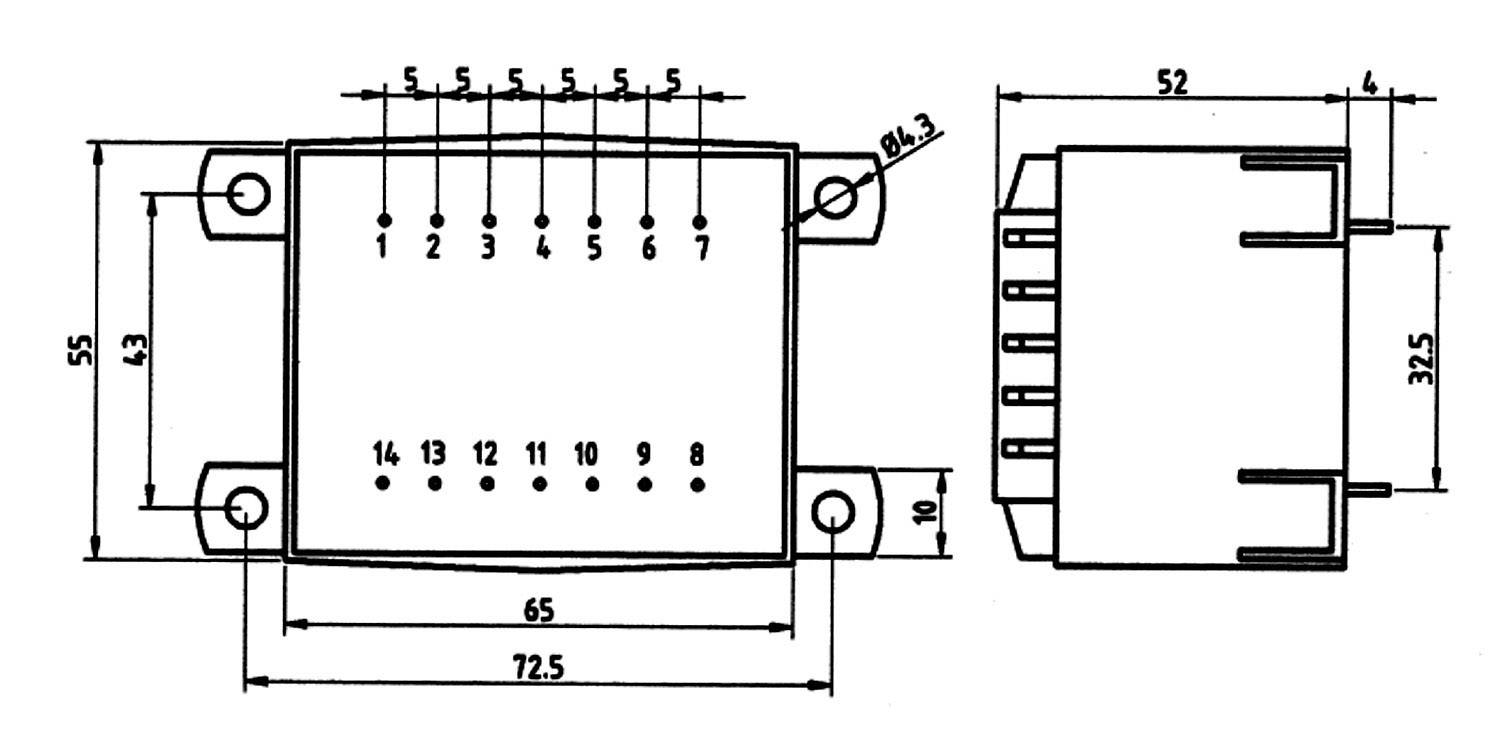

- Width
54.5 mm
- Height
53 mm
- Length
64.5 mm
- Type
85/402
- Dim
(L x W x H) 64.5 x 54.5 x 53 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
680 g
- Content
1 pc(s)
25 VA
- Output voltage
12 V
