Weiss Elektrotechnik NGE200 Compact PSU transformer 1 x 230 V 1 x 0 V, 6 V AC, 15 V AC, 18 V AC, 21 V AC, 24 V AC, 27 V
EAN:
Part number:
Item no:
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Weiss Elektrotechnik NGE200 Compact PSU transformer 1 x 230 V 1 x 0 V, 6 V AC, 15 V AC, 18 V AC, 21 V AC, 24 V AC, 27 V AC, 30 V AC 200 VA, 160 W 6.65 A
- 1 x 230 V
- 1 x 0 V, 6 V AC, 15 V AC, 18 V AC, 21 V AC, 24 V AC, 27 V AC, 30 V AC
- 6.65 A
- 200 VA, 160 W
Technical specifications
- Product type
Compact PSU transformer
- Output voltage
0 V
6 V AC
15 V AC
18 V AC
21 V AC
24 V AC
27 V AC
30 V AC
- Output current
6.65 A
- No. of outputs
1 x
- No. of inputs
1 x
200 VA
160 W
- Input voltage
230 V
- Connection
Socket
- Output voltage (number x voltage)
1 x 0 V, 6 V AC, 15 V AC, 18 V AC, 21 V AC, 24 V AC, 27 V AC, 30 V AC
- Input voltage (number x voltage)
1 x 230 V
- Frequency
50 - 60 Hz
- Content
1 pc(s)
- Insulation class
II
- Protection class
II
- Features
+ rectifier
- Type
NGE200
200 VA/AC/160 W/DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 510533 Weiss Elektrotechnik NGE200 Compact PSU transformer 1 x 230 V 1 x 0 V, 6 V AC, 15 V AC, 18 V AC, 21 V AC, 24 V AC, 27 V
Description

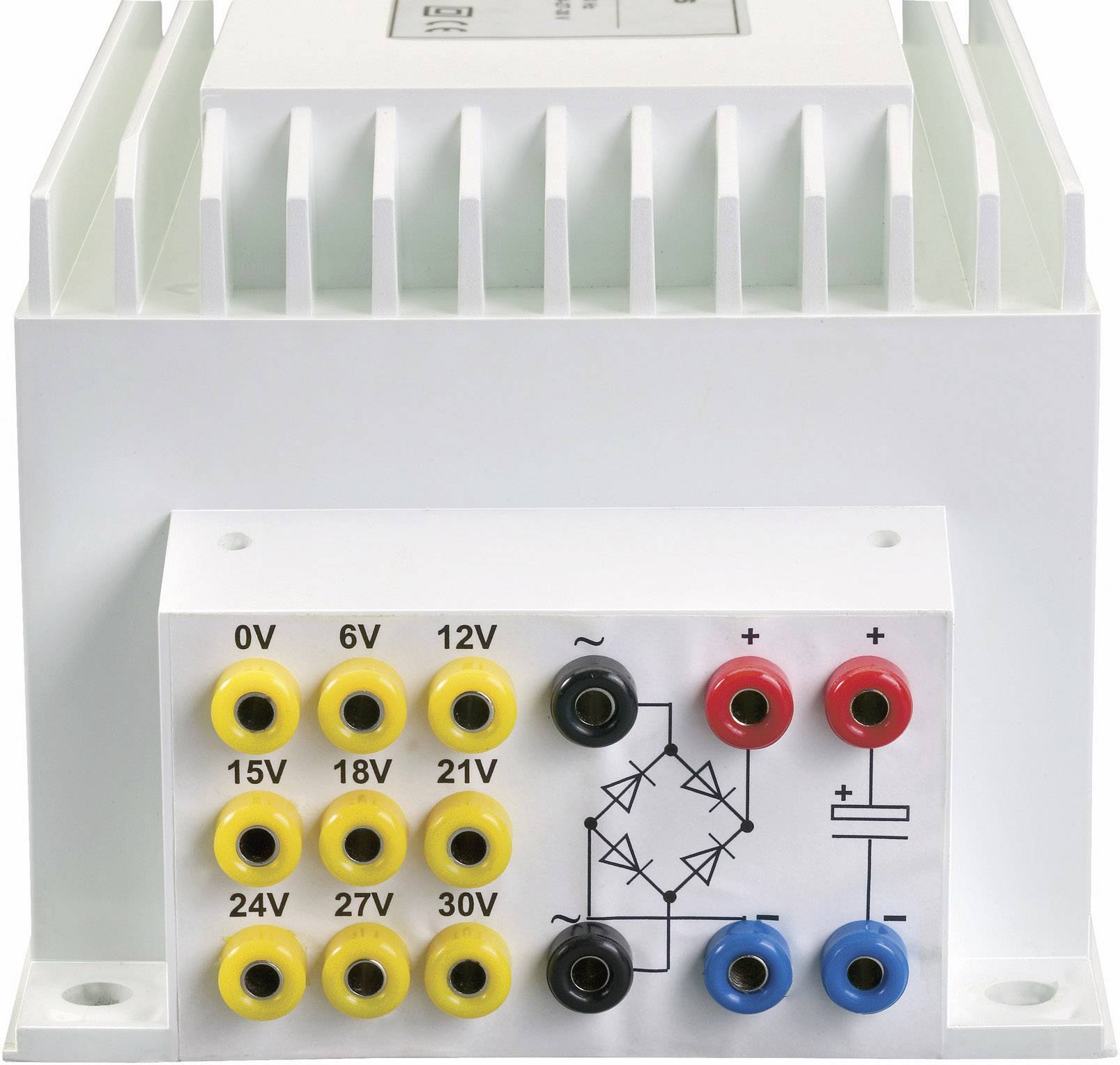

By simply plugging in into different outputs these experimenting transformers can provide 8 different voltages in steps of 3 V, AC or DC. Can optionally be fitted with an electrolytic capacitor.
Features
- Transformer, rectifier and electrolytic capacitors potted in plastic housing
- Protection Class II
- EN 61 558-1
- Protected by glass fuse and autoreset thermal fuse.
