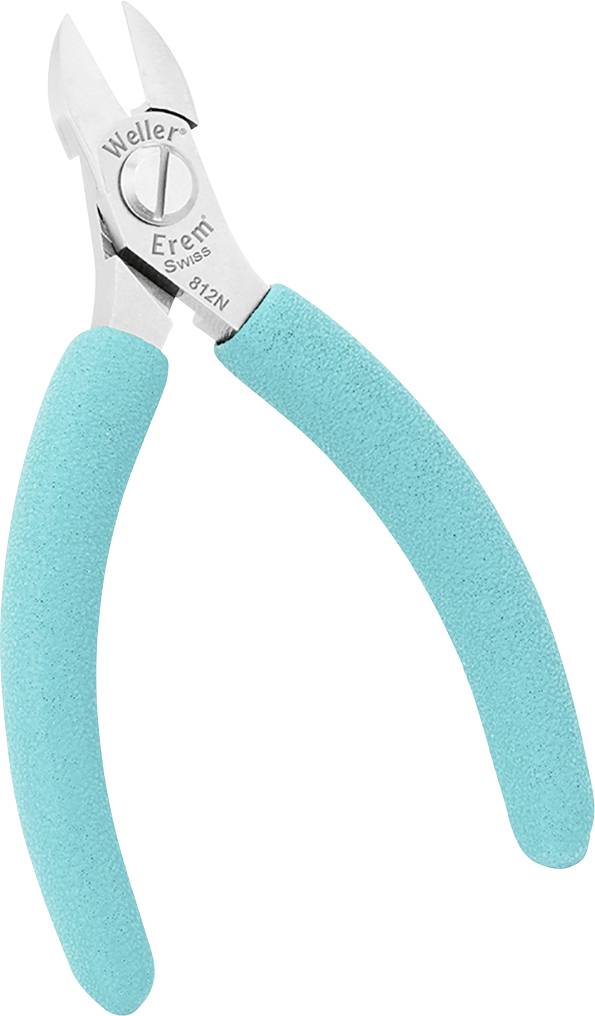

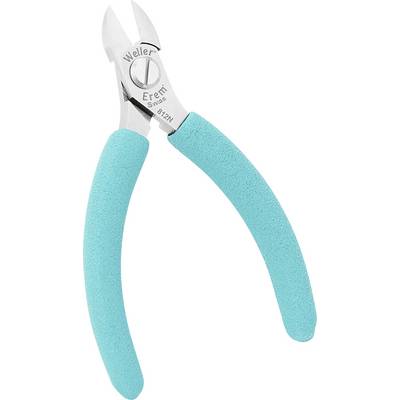

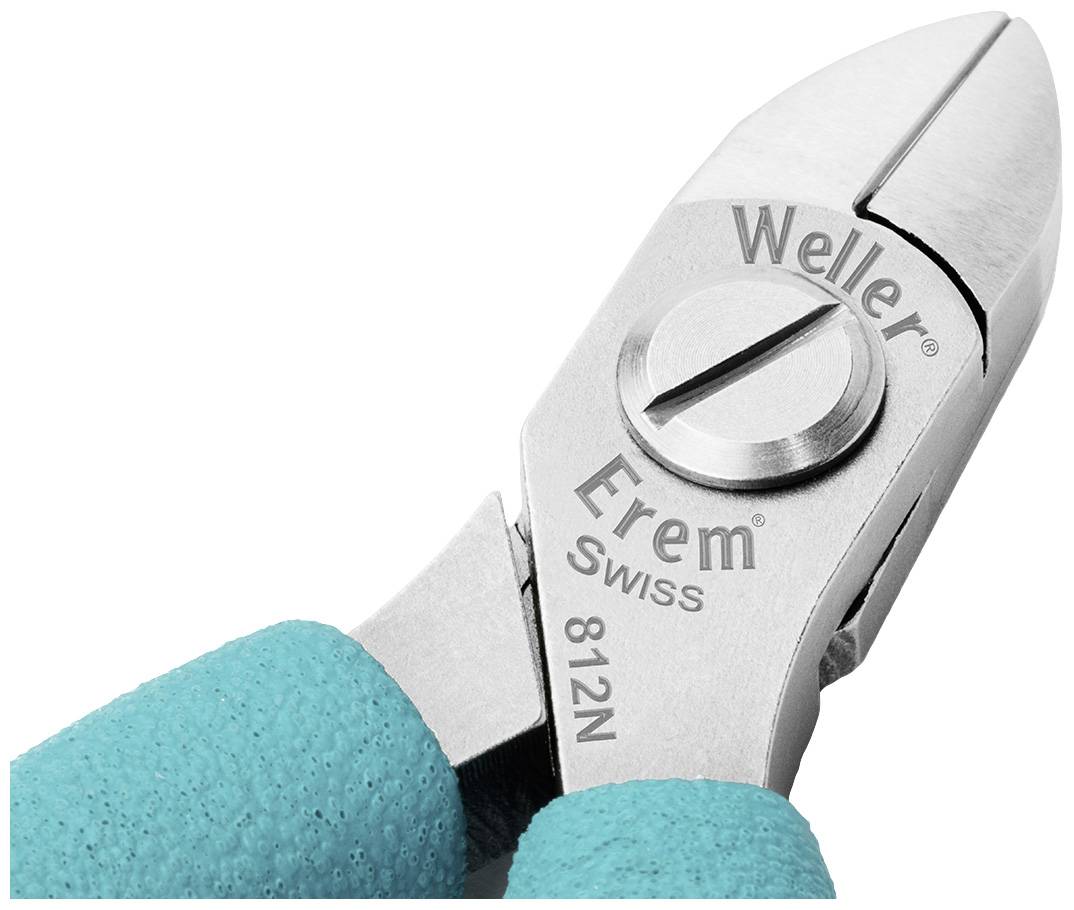

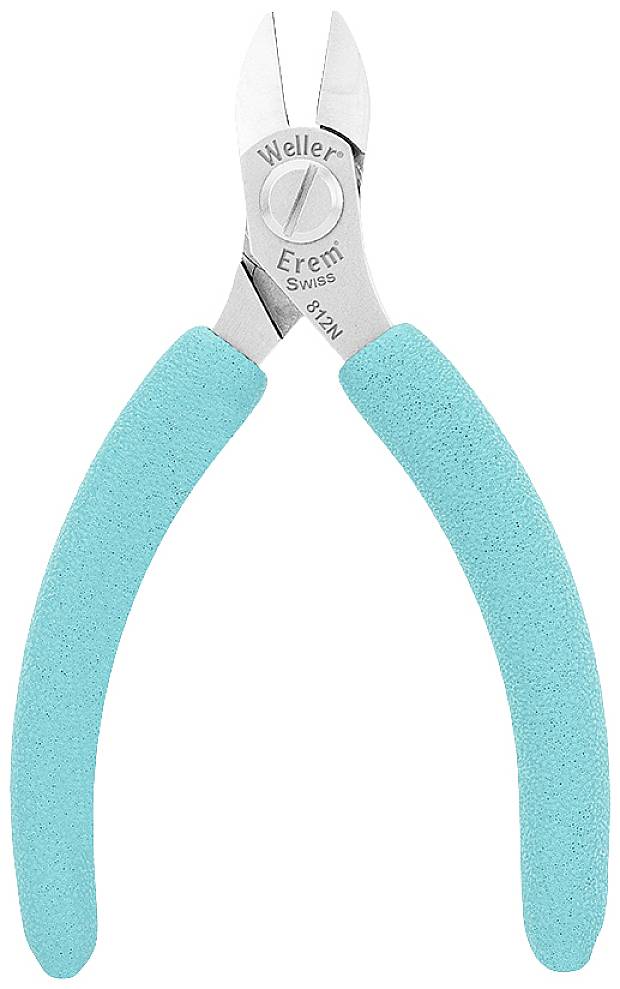

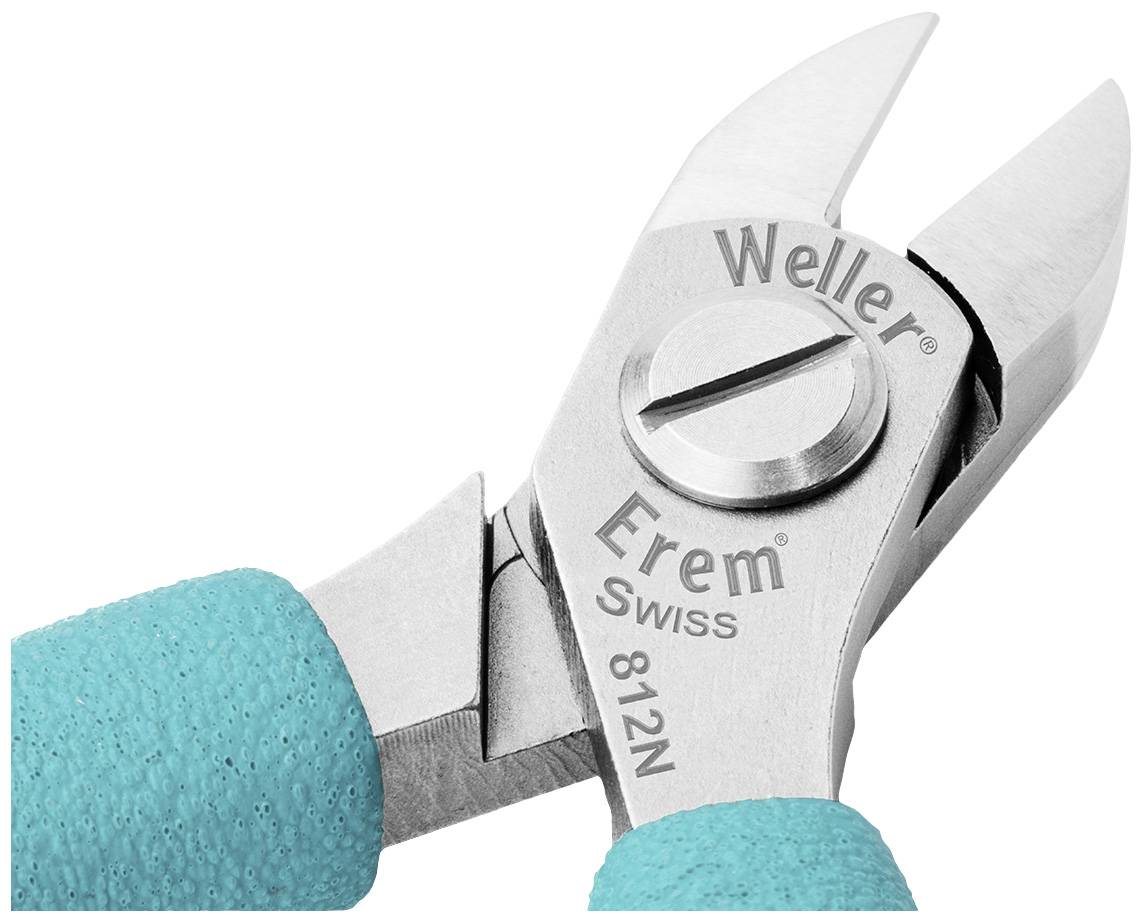

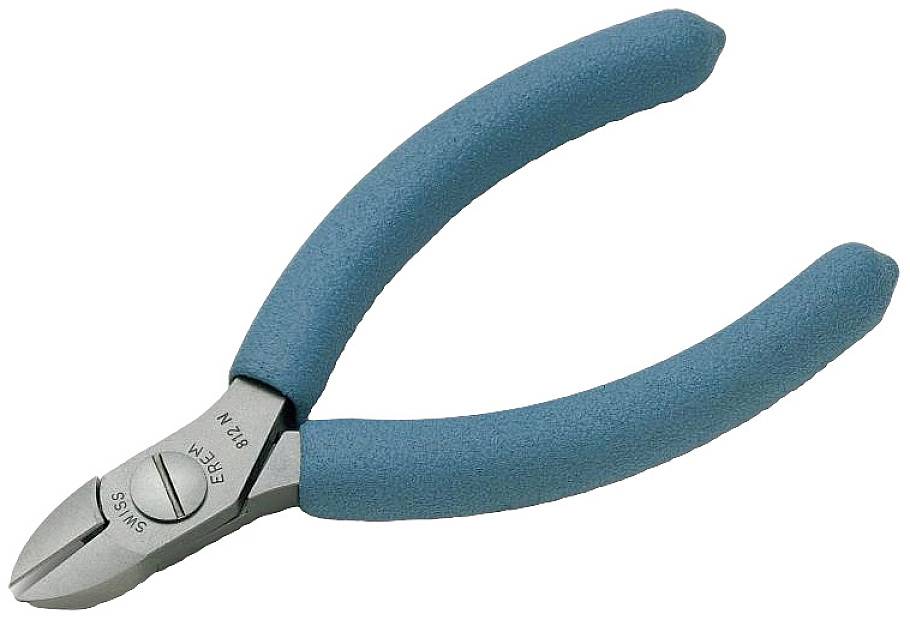

Weller Erem® 812N ESD Side cutter 120 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Side cutter - oval head
- Precise cutting with the high-precision screw system for smooth, free-play movement of the tool legsUncompromising Swiss quality, powerful and durablePowerful and sharpHand-made cutting edges for superior performance and sharpnessComfort, security and gripErgonomically shaped handles guarantee maximum comfort and fatigue-free working thanks to our opening stopESD secureManufactured from ESD-safe material to prevent damage to sensitive components
Technical specifications
- Cutting length: 15 mm
- Head width 13.5 mm
- Head thickness 7.2 mm
- Head length 21 mm
- Product type
Side cutter
- Manufacturer part #
812N
- Range of use
ESD
- Length
120 mm
- Wire hardness (max.) soft wire
0.60 mm
- Wire hardness (max.) medium wire
1.20 mm
- Wire hardness (max.) hard wire
1.80 mm
- Weight
85.00 g
Documents & Downloads
Datasheet
Datasheet 2377236 Weller Erem® 812N ESD Side cutter 120 mm
User & Safety Instructions
User & Safety Instructions 2377236 Weller Erem® 812N ESD Side cutter 120 mm
Description
The Weller Erem 800 Maxi series is a range of large precision cutters for general cutting applications in electronics for cutting large wire diameters. The cutters are made from high-quality tool steel with cutting edges hardened to 63-65 HRC. The precision cutters have a non-reflective surface, are ESD-safe and can be sharpened.
This text is machine translated.
This text is machine translated.
Features
- This is the standard head shape
- It is used for all cutting tasks in easily accessible places
- The solid head enables a high cutting capacity and is characterized by robustness
- Same as 896E
