Weller Heating element 600 W 50°C - 400 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,671.43 / piece)
€ 1,671.43
plus VAT.
Only 8 Piece(s) available
Highlights & Details

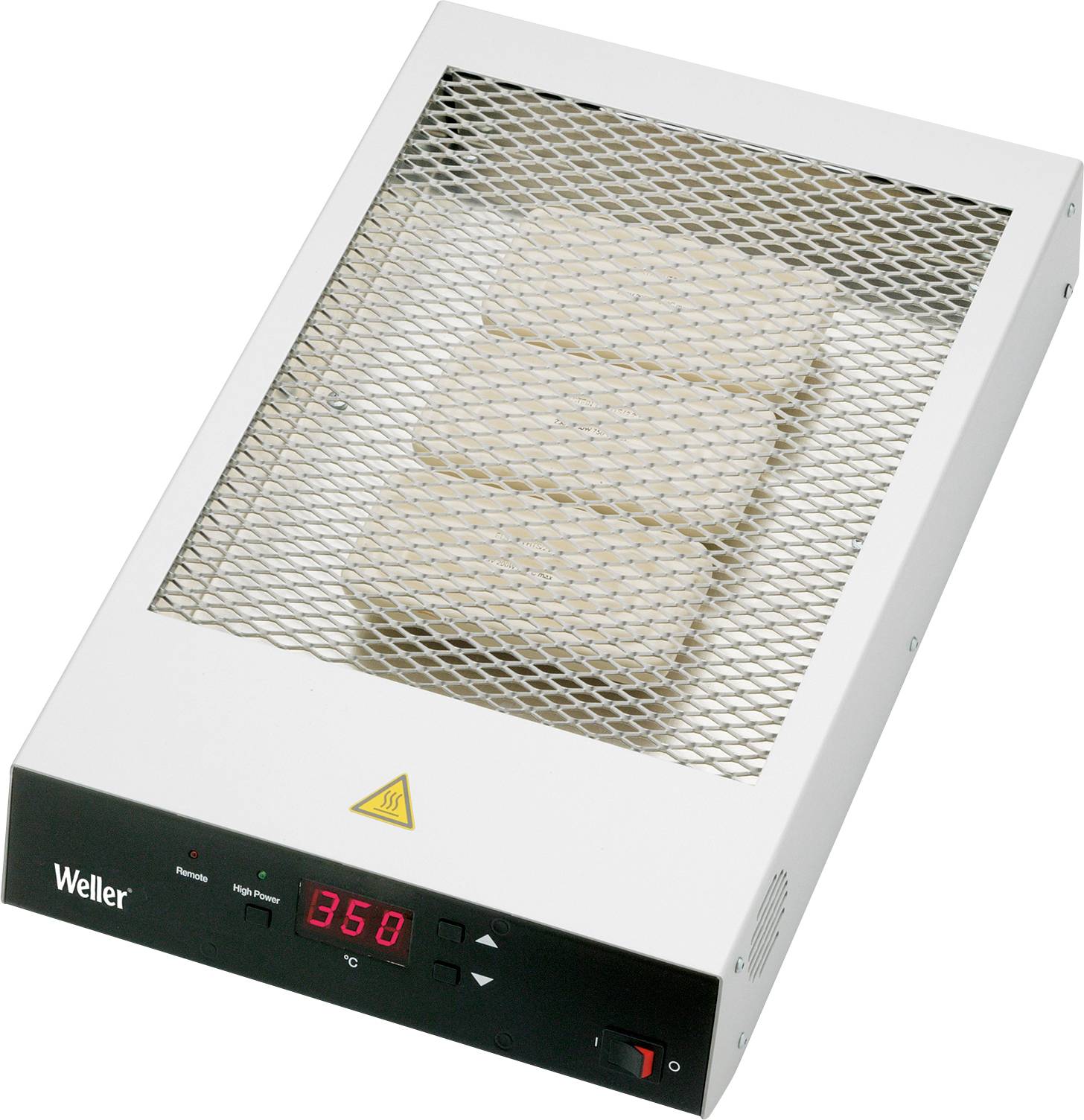

WHP 3000 infrared-pre-heat plate
- 600 W, 230 V
- Board sizw upto 120 x 190 mm
- Temperature range 50°C 400°C
- Digital display for set and actual temperature
- 2 heated zones can be selected
- External sensor (accessory) connectable
- RS 232Interface cable e.g. for connection to WHA 3000 hot air station
- Easy Fix board holder
- Ktype thermo couple socket for monitoring
Technical specifications
- Heating plate dimensions L x B (mm): 190 x 120 mm
- WX-compatible.
- Product type
Heating element
- Max. power
600 W
- Temperature range
50°C - 400 °C
- Max. temperature
400 °C
- Dim
(L x W x H) 254 x 395 x 70 mm
- Operating voltage
230 V DC
- Width
395 mm
- Height
70 mm
- Length
254 mm
- Min. temperature
50 °C
Documents & Downloads
Datasheet
Datasheet 1385244 Weller Heating element 600 W 50°C - 400 °C
User & Safety Instructions
User & Safety Instructions 1385244 Weller Heating element 600 W 50°C - 400 °C
User & Safety Instructions 1385244 Weller Heating element 600 W 50°C - 400 °C
Description
Features
- Infrared-pre-heat 600 W/230 V with easy fix PCB holder
- 600 W, 230 V
- Heated surface 120 x 190 mm
- Temperature range 50°C - 400°C
- Digital display for nominal- and actual temperature
- Digital regulating electronic
- 3 infrared-high temperature emitter for quick and efficient heating
- 2 heating zones can be selected
- External sensor (accessory) can be connected
- RS232-interface, for example, to connect to WHA 3000 Hot-air station
- 2 PCB holder easy fix.
Hints
This text is machine translated.
