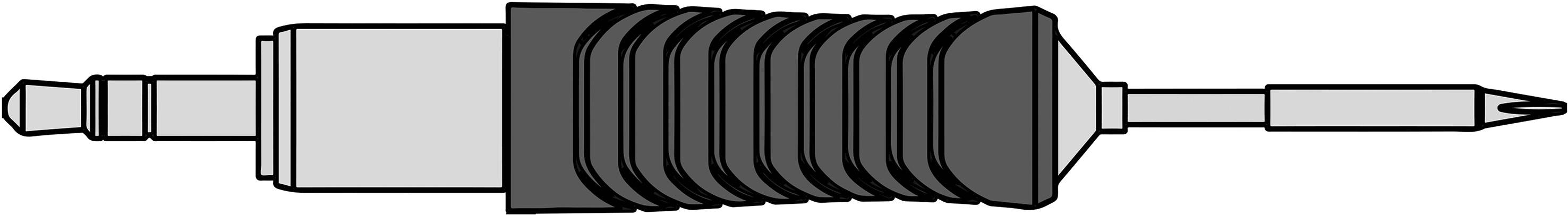

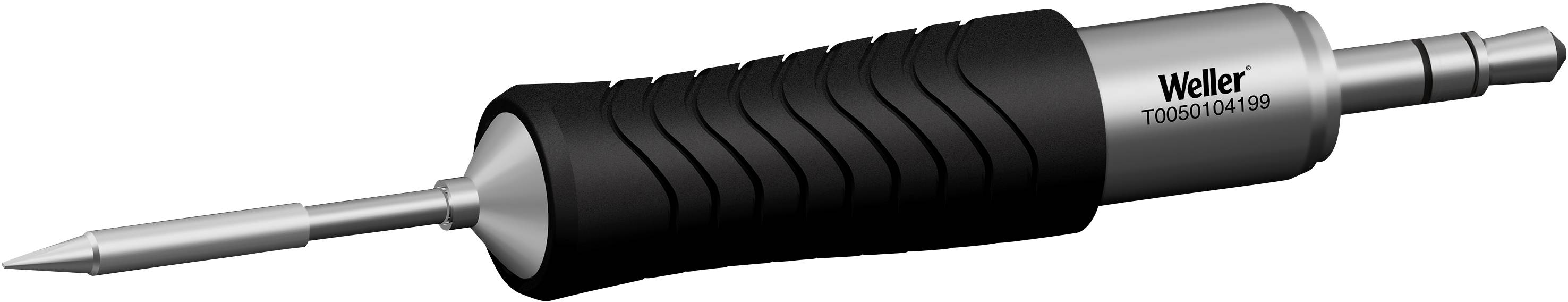

Weller RTP 004 S Soldering tip Chisel-shaped Tip size 0.4 mm Tip length 17 mm Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Weller RT Pico soldering tip, chisel 0.4mm×0.2mm
- Reduced working distance to components. Higher precision and best tool handling.
- Fast heating and reaction time, sensor close to the soldering spot, perfect heat transfer. No downtime, continuous workflow, excellent results.
- Motion sensor for activation, operation and setup information stored in the tool. Energy-saving, longer tip life, flexibility for the user thanks to use at the bank/station.
- Only soldering tip on the market with tool-free tip change. 20% faster tip change than comparable tools.
- One station for all active tips and tools. WX system meets all manual soldering requirements and is the only ESD-safe soldering station on the market, including control panel.
Technical specifications

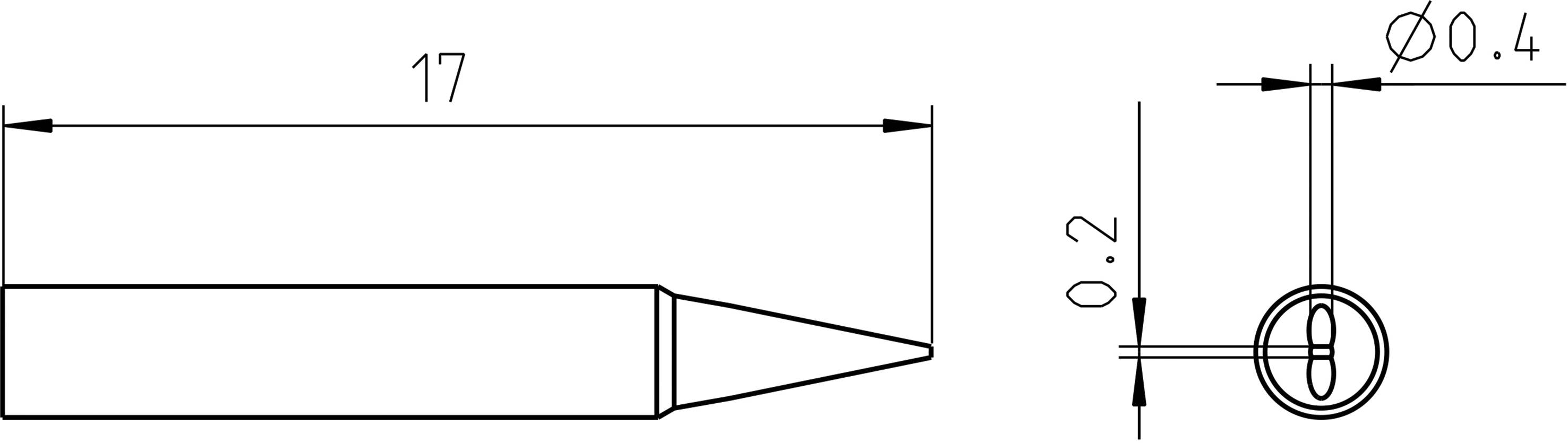

- Chisel-shaped : 0.4 x 0.2
- Tip shape
Chisel-shaped
- Product type
Soldering tip
- Compatible with
Weller
- Type
RTP 004 S
- Compatible with (details)
WXPP
- Tip size
0.4 mm
- Tip length
17 mm
Documents & Downloads
Datasheet
Datasheet 2177628 Weller RTP 004 S Soldering tip Chisel-shaped Tip size 0.4 mm Tip length 17 mm Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2177628 Weller RTP 004 S Soldering tip Chisel-shaped Tip size 0.4 mm Tip length 17 mm Content 1 pc(s)
Description
Powerful active soldering tip RT Pico for the smallest micro components: 0402 to 01005
